Lascar USB Thermocouple Data Loggers
Description
Lascar EL-USB-TC Data Loggers monitor temperature using a thermocouple probe. Models with and without display are available. Integral USB plug means no need to search for a cable to transfer data to a PC.
• –200° to +1350°C (–328° to +2462°F) Measurement Range
• Stores More Than 32,000 Readings
• Programmable Sample Rates from 1 Sec to 12 Hours
• 4 Digit LCD Readout (-LCD model) 0.5°C/1°F Resolution
• Accepts K, J & T Thermocouples via Connector in Base
• Supplied with Type K probe
Lascar’s EasyLog USB control software is supplied free of charge with each data logger. It is easy to install and use. imply insert any of these loggers into your computer’s USB port, name it, choose your required sampling rate, set high and low alarms (if required) and set the logger start time. Once configured, the logger can be removed from the computer to log independently. After logging is complete, data is downloaded back to the PC where it can be analyzed, viewed as a graph and exported to Excel.
EasyLog allows the following parameters to be configured:
Logger name
Logging rates
Alarms
Immediate, delayed and push-to-start logging
Data rollover and more
All loggers are supplied with configuration software and a 3.6 V lithium battery.
| Item # | Description |
|---|---|

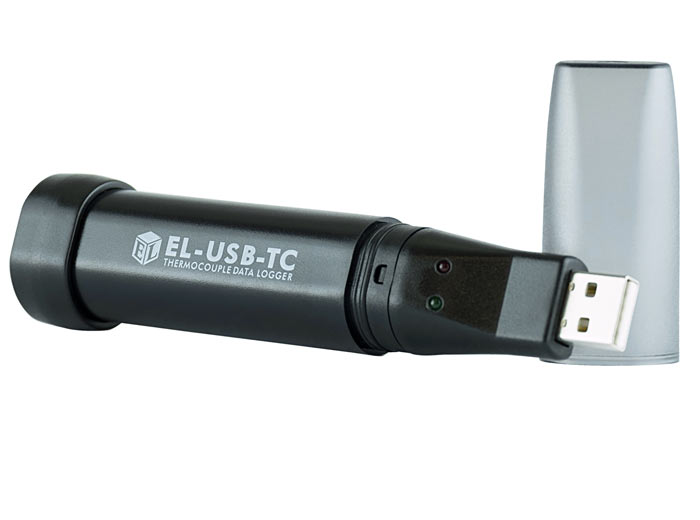

| EL-USB-TC | Thermocouple Data Logger |

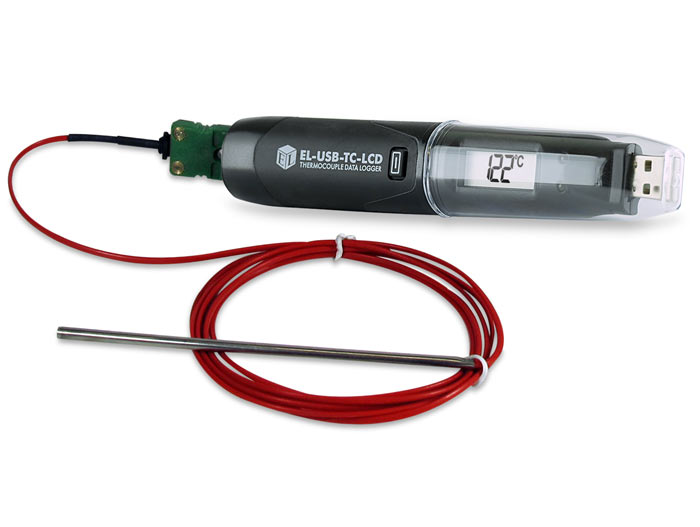

| EL-USB-TC-LCD | Thermocouple Data Logger with Display |
