Lascar Splash-Proof Low Light Displays – SP400 Series


These ultra-low profile panel meters feature a 3½ digit LCD with 9.75mm (0.38″) digit height With 200mV d.c. full scale reading, auto-zero and auto-polarity, the meters plug directly into a 9-way SIL socket and can be fitted into a panel via the fixing clip.  Splash-proof protection is achieved by fitting the seal supplied.

  • Backlit 3½ Digit LCD Display
  • ±200mV DC Bipolar Input
  • 4.75-7.5V DC Supply
  • Selectable Decimal Point Position
  • 1.38″ x 0.88″ Size, 0.38″ Digit Height
  • Auto-zero, Auto-polarity

SP-400        SP-400-blue       SP-400-EB

This product is currently out of stock and unavailable.

SKU: N/A Categories: , ,

products found
Item # Display Supply Voltage Input Dimensions

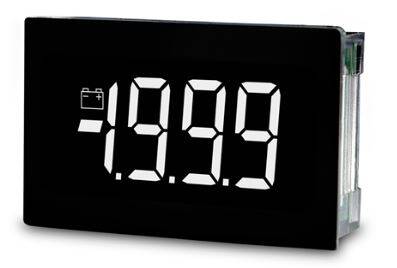

SP-400-EB-WBlack LCD with white digits4.75 to 7.5 VDC±200mV1.38 x 0.88 in

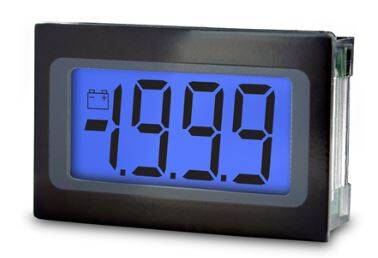

SP-400-BLUEBlue LED backlighting3 to 7.5 VDC±200mV1.38 x 0.88 in

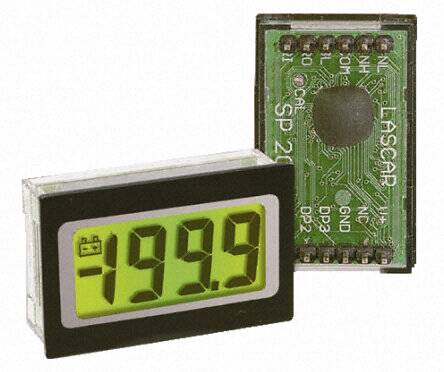

SP-400Green LED backlighting3 to 7.5 VDC±200mV1.38 x 0.88 in
