Target-Type Flow Sensor – DPT-C series – Kobold

Description

The KOBOLD DPT Series target-type flowmeter uses a unique, patented target system to measure the flow of liquids. This design uses a single leaf-spring both to suspend the target and to provide the target resetting force. The use of a single leaf-spring is a simple, reliable design which allows for operation of the flowmeter with virtually no wear. The target-type measuring system offers a very low head loss and is generally immune to problems caused by fluids with high solids content.

The mechanism consists of a target plate (1) and lever arm (2). Fluid flow causes the target plate and lever arm to deflect against the leaf-spring. A permanent  magnet (3) attached to the lever arm and Hall effect sensor (4) mounted inside the display unit translate the angular motion of the target to an electrical signal. The signal from the Hall effect sensor is used by the electronic indicators to provide a flowrate display, adjustable setpoint switches, or an analog flow signal.

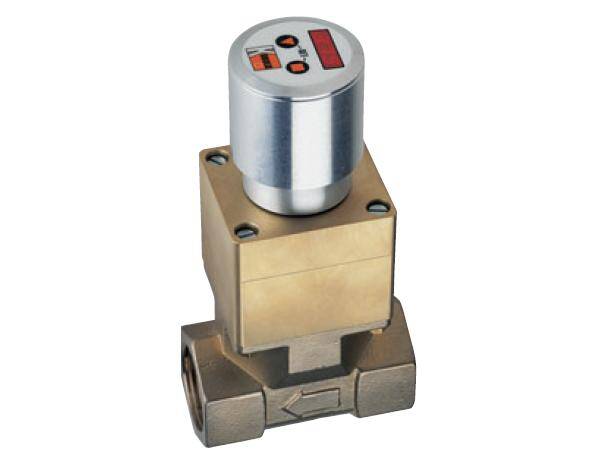

DPT-C Series Compact Sensors

  • 1.5-8 to 225-500 GPM Water
  • Bronze and Stainless Bodies
  • Variety of Wetted Materials
  • Line Sizes 3/8″ to 3″ NPT
  • Compact LED display with switch and 4-20 mA flow transmitter

Catalog-Page-117                                   Kobold-DPT-c

For right to left flow, change last two digits in part number to RT.

This product is currently out of stock and unavailable.

SKU: N/A Categories: ,
Show Advanced Filters

products found
Item # Range GPM Material Female Fitting Flow Direction
DPT-1272HC34PLT225-500Stainless Steel3 inch NPTLeft to Right
DPT-1172HC34PLT225-500Bronze3 inch NPTLeft to Right
DPT-1264HC34PLT175-400Stainless Steel3 inch NPTLeft to Right
DPT-1164HC34PLT175-400Bronze3 inch NPTLeft to Right
DPT-1262HC34PLT40-200Stainless Steel2 inch NPTLeft to Right
DPT-1162HC34PLT40-200Bronze2 inch NPTLeft to Right
DPT-1254HC34PLT25-120Stainless Steel2 inch NPTLeft to Right
DPT-1154HC34PLT25-120Bronze2 inch NPTLeft to Right
DPT-1252HC34PLT25-60Stainless Steel1.5 inch NPTLeft to Right
DPT-1152HC34PLT25-60Bronze1.5 inch NPTLeft to Right
DPT-1244HC34PLT15-45Stainless Steel1.5 inch NPTLeft to Right
DPT-1144HC34PLT15-45Bronze1.5 inch NPTLeft to Right
DPT-1242HC34PLT20-35Stainless Steel1 inch NPTLeft to Right
DPT-1142HC34PLT20-35Bronze1 inch NPTLeft to Right
DPT-1234HC34PLT5-20Stainless Steel1 inch NPTLeft to Right
DPT-1134HC34PLT5-20Bronze1 inch NPTLeft to Right
DPT-1232HC34PLT5-25Stainless Steel3/4 inch NPTLeft to Right
DPT-1132HC34PLT5-25Bronze3/4 inch NPTLeft to Right
DPT-1224HC34PLT1.7-15Stainless Steel3/4 inch NPTLeft to Right
DPT-1124HC34PLT1.7-15Bronze3/4 inch NPTLeft to Right
DPT-1222HC34PLT3-18Stainless Steel1/2 inch NPTLeft to Right
DPT-1122HC34PLT3-18Bronze1/2 inch NPTLeft to Right
DPT-1214HC34PLT1.5-8Stainless Steel1/2 inch NPTLeft to Right
DPT-1114HC34PLT1.5-8Bronze1/2 inch NPTLeft to Right
DPT-1212HC34PLT3-12.5Stainless Steel3/8 inch NPTLeft to Right
DPT-1112HC34PLT3-12.5Bronze3/8 inch NPTLeft to Right
DPT-1207HC34PLT1.5-8Stainless Steel3/8 inch NPTLeft to Right
DPT-1107HC34PLT1.5-8Bronze3/8 inch NPTLeft to Right
