Digital Pressure Sensor – PSD series- Kobold

Description

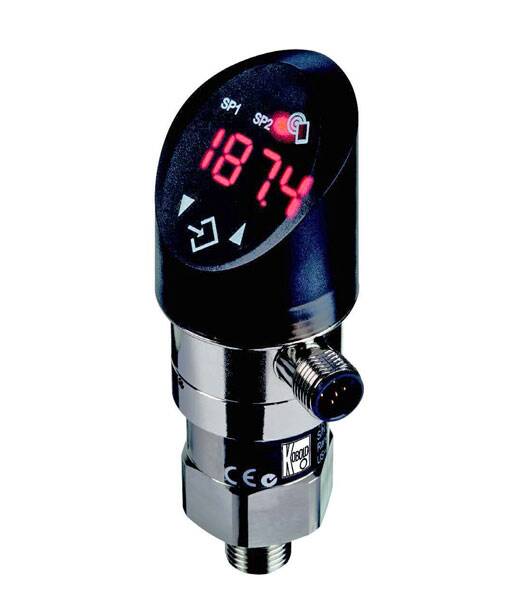

The PSD is an economical, adjustable pressure switch with a digital display and analog output for monitoring the pressure of compatible liquids, air or other non-combustible, non-aggressive gases. The switching pressure may be viewed on the rotatable LED display and easily adjusted via buttons. The compact device has a high-quality stainless steel housing with a protection class of IP 65. The switching points, reset points, switch types and other different functions can be programmed simply and without pressurization of the device.

The economical PSD offers the ideal combination of two pressure switches and a scalable transmitter output with a 45 degree viewable, rotatable display. The parameters can be set directly on the device. Within the settings, there are a comprehensive set of options, making the PSD suitable for a wide range of demanding applications. There is integral hysteresis, window, and delay functionality included. OEM quantity pricing available upon request.

  • Full Scale Ranges from 30 to 7500 PSI
  • Analog Output Switchable V or mA
  • Two PNP Transistor Switch Outputs
  • ±0.5% Accuracy
  • Display & Connector Independently Rotatable
  • Adjustable Hysteresis, Window & Delay
  • Easy Button Setup
  • 1/4″ NPT Connection

Catalog-Page-111a                                    Kobold-PSD

This product is currently out of stock and unavailable.

SKU: N/A Categories: ,
Show Advanced Filters

products found
Item # Range
KO/PSD-433N2P0750 to 150 psi
KO/PSD-433N2P1150 to 1000 psi
KO/PSD-433N2P0650 to 100 psi
KO/PSD-433N2P1260 to 1500 psi
KO/PSD-433N2P0850 to 200 psi
KO/PSD-433N2P1400 to 3000 psi
KO/PSD-433N2P0550 to 50 psi
KO/PSD-433N2P0900 to 300 psi
KO/PSD-433N2P1300 to 2000 psi
KO/PSD-433N2P0450 to 30 psi
KO/PSD-433N2P1700 to 7500 psi
KO/PSD-433N2P1500 to 5000 psi
KO/PSD-433N2P1000 to 500 psi
