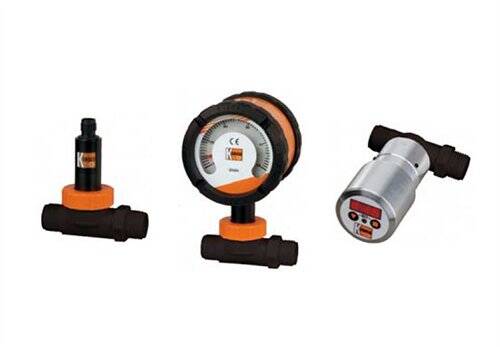

Low Flow Sensor – DPL Series – Kobold

Description

The Kobold DPL Series is ideal for applications requiring accurate flow measurement of transparent liquid media. The KOBOLD DPL Series all-plastic paddle-wheel flow sensor is a versatile transmitter capable of accurately measuring flow rates to 400 GPH. It is ideal for applications requiring low-cost, yet accurate flow measurement of transparent liquid media. All wetted parts are made of synthetic materials, giving the sensor excellent resistance to aggressive media. The compact size of the DPL makes it an ideal candidate for jobs requiring a minimum installation size, such as in the interior of larger systems. These features make the flow sensor a suitable choice for a wide variety of industrial, commercial and laboratory flow applications.

Areas of application:

  • Low viscosity liquids
  • Non-conductive liquids
  • Volume dosing with external electronics
  • Filter aid
  • Beverage industry

Features:

  •  0.4 to 400 GPH sizes
  •  Square Wave Pulse, Analog, or Switch Outputs
  •  Resistant to Aggressive Media
  • Low Flow Sensor DPL Series Specs

Catalog-Page-111a                                  Kobold-DPL

SKU: N/A Categories: ,
Show Advanced Filters

products found
Item # G.P.H. Fluid Connection Freq. at max flow Gasket Material Electronics
KO/DPL-1PU1G4K0000.4-8.0G 1/2 male272NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU1G4F3000.4-8.0G 1/2 male272NBRFreq. Output, open collector PNP
KO/DPL-1PU1G4L3430.4-8.0G 1/2 male272NBR4-20 mA output
KO/DPL-1PU1G4C34P0.4-8.0G 1/2 male272NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU1G4C30R0.4-8.0G 1/2 male272NBRLED display, 2 open collector PNP
KO/DPL-1PU1G4Z3400.4-8.0G 1/2 male272NBR240° pointer, 4-20 mA
KO/DPL-1PU1S4K0000.4-8.0Hose barbs, 1/2 PVC272NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU1S4F3000.4-8.0Hose barbs, 1/2 PVC272NBRFreq. Output, open collector PNP
KO/DPL-1PU1S4L3430.4-8.0Hose barbs, 1/2 PVC272NBR4-20 mA output
KO/DPL-1PU1S4C30R0.4-8.0Hose barbs, 1/2 PVC272NBRLED display, 2 open collector PNP
KO/DPL-1PU1S4C34P0.4-8.0Hose barbs, 1/2 PVC272NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU1S4Z3400.4-8.0Hose barbs, 1/2 PVC272NBR240° pointer, 4-20 mA
KO/DPL-1PU2G4K0000.8-28G 1/2 male471NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU2G4F3000.8-28G 1/2 male471NBRFreq. Output, open collector PNP
KO/DPL-1PU2G4L3430.8-28G 1/2 male471NBR4-20 mA output
KO/DPL-1PU2G4C30R0.8-28G 1/2 male471NBRLED display, 2 open collector PNP
KO/DPL-1PU2G4C34P0.8-28G 1/2 male471NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU2G4Z3400.8-28G 1/2 male471NBR240° pointer, 4-20 mA
KO/DPL-1PU2S4K0000.8-28Hose barbs, 1/2 PVC471NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU2S4C30R0.8-28Hose barbs, 1/2 PVC471NBRLED display, 2 open collector PNP
KO/DPL-1PU2S4C34P0.8-28Hose barbs, 1/2 PVC471NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU2S4F3000.8-28Hose barbs, 1/2 PVC471NBRFreq. Output, open collector PNP
KO/DPL-1PU2S4L3430.8-28Hose barbs, 1/2 PVC471NBR4-20 mA output
KO/DPL-1PU3G4K0003.0-95G 1/2 male528NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU2S4Z3400.8-28Hose barbs, 1/2 PVC471NBR240° pointer, 4-20 mA
KO/DPL-1PU3G4F3003.0-95G 1/2 male528NBRFreq. Output, open collector PNP
KO/DPL-1PU3G4L3433.0-95G 1/2 male528NBR4-20 mA output
KO/DPL-1PU3G4C30R3.0-95G 1/2 male528NBRLED display, 2 open collector PNP
KO/DPL-1PU3G4Z3403.0-95G 1/2 male528NBR240° pointer, 4-20 mA
KO/DPL-1PU3G4C34P3.0-95G 1/2 male528NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU3S4K0003.0-95Hose barbs, 1/2 PVC528NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU3S4C30R3.0-95Hose barbs, 1/2 PVC528NBRLED display, 2 open collector PNP
KO/DPL-1PU3S4F3003.0-95Hose barbs, 1/2 PVC528NBRFreq. Output, open collector PNP
KO/DPL-1PU3S4C34P3.0-95Hose barbs, 1/2 PVC528NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU3S4L3433.0-95Hose barbs, 1/2 PVC528NBR4-20 mA output
KO/DPL-1PU3S4Z3403.0-95Hose barbs, 1/2 PVC528NBR240° pointer, 4-20 mA
KO/DPL-1PU4G4L3436.0-190G 1/2 male300NBR4-20 mA output
KO/DPL-1PU4G4F3006.0-190G 1/2 male300NBRFreq. Output, open collector PNP
KO/DPL-1PU4G4K0006.0-190G 1/2 male300NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU4S4K0006.0-190Hose barbs, 1/2 PVC300NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU4G4C30R6.0-190G 1/2 male300NBRLED display, 2 open collector PNP
KO/DPL-1PU4G4Z3406.0-190G 1/2 male300NBR240° pointer, 4-20 mA
KO/DPL-1PU4G4C34P6.0-190G 1/2 male300NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU4S4F3006.0-190Hose barbs, 1/2 PVC300NBRFreq. Output, open collector PNP
KO/DPL-1PU4S4L3436.0-190Hose barbs, 1/2 PVC300NBR4-20 mA output
KO/DPL-1PU4S4C34P6.0-190Hose barbs, 1/2 PVC300NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU4S4C30R6.0-190Hose barbs, 1/2 PVC300NBRLED display, 2 open collector PNP
KO/DPL-1PU4S4Z3406.0-190Hose barbs, 1/2 PVC300NBR240° pointer, 4-20 mA
KO/DPL-1PU5G4F30016-400G 1/2 male399NBRFreq. Output, open collector PNP
KO/DPL-1PU5G4L34316-400G 1/2 male399NBR4-20 mA output
KO/DPL-1PU5G4K00016-400G 1/2 male399NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU5G4C34P16-400G 1/2 male399NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU5G4Z34016-400G 1/2 male399NBR240° pointer, 4-20 mA
KO/DPL-1PU5S4K00016-400Hose barbs, 1/2 PVC399NBRFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU5G4C30R16-400G 1/2 male399NBRLED display, 2 open collector PNP
KO/DPL-1PU5S4L34316-400Hose barbs, 1/2 PVC399NBR4-20 mA output
KO/DPL-1PU5S4C34P16-400Hose barbs, 1/2 PVC399NBRLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1PU5S4C30R16-400Hose barbs, 1/2 PVC399NBRLED display, 2 open collector PNP
KO/DPL-1PU5S4F30016-400Hose barbs, 1/2 PVC399NBRFreq. Output, open collector PNP
KO/DPL-1VU1G4K0000.4-8.0G 1/2 male272FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1PU5S4Z34016-400Hose barbs, 1/2 PVC399NBR240° pointer, 4-20 mA
KO/DPL-1VU1G4L3430.4-8.0G 1/2 male272FKM4-20 mA output
KO/DPL-1VU1G4F3000.4-8.0G 1/2 male272FKMFreq. Output, open collector PNP
KO/DPL-1VU1G4C30R0.4-8.0G 1/2 male272FKMLED display, 2 open collector PNP
KO/DPL-1VU1G4Z3400.4-8.0G 1/2 male272FKM240° pointer, 4-20 mA
KO/DPL-1VU1G4C34P0.4-8.0G 1/2 male272FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU1S4K0000.4-8.0Hose barbs, 1/2 PVC272FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU1S4F3000.4-8.0Hose barbs, 1/2 PVC272FKMFreq. Output, open collector PNP
KO/DPL-1VU1S4C30R0.4-8.0Hose barbs, 1/2 PVC272FKMLED display, 2 open collector PNP
KO/DPL-1VU1S4C34P0.4-8.0Hose barbs, 1/2 PVC272FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU1S4L3430.4-8.0Hose barbs, 1/2 PVC272FKM4-20 mA output
KO/DPL-1VU2G4K0000.8-28G 1/2 male471FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU1S4Z3400.4-8.0Hose barbs, 1/2 PVC272FKM240° pointer, 4-20 mA
KO/DPL-1VU2G4F3000.8-28G 1/2 male471FKMFreq. Output, open collector PNP
KO/DPL-1VU2G4L3430.8-28G 1/2 male471FKM4-20 mA output
KO/DPL-1VU2G4C34P0.8-28G 1/2 male471FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU2S4K0000.8-28Hose barbs, 1/2 PVC471FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU2G4C30R0.8-28G 1/2 male471FKMLED display, 2 open collector PNP
KO/DPL-1VU2G4Z3400.8-28G 1/2 male471FKM240° pointer, 4-20 mA
KO/DPL-1VU2S4L3430.8-28Hose barbs, 1/2 PVC471FKM4-20 mA output
KO/DPL-1VU2S4C34P0.8-28Hose barbs, 1/2 PVC471FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU2S4C30R0.8-28Hose barbs, 1/2 PVC471FKMLED display, 2 open collector PNP
KO/DPL-1VU2S4F3000.8-28Hose barbs, 1/2 PVC471FKMFreq. Output, open collector PNP
KO/DPL-1VU2S4Z3400.8-28Hose barbs, 1/2 PVC471FKM240° pointer, 4-20 mA
KO/DPL-1VU3G4L3433.0-95G 1/2 male528FKM4-20 mA output
KO/DPL-1VU3G4F3003.0-95G 1/2 male528FKMFreq. Output, open collector PNP
KO/DPL-1VU3G4K0003.0-95G 1/2 male528FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU3G4Z3403.0-95G 1/2 male528FKM240° pointer, 4-20 mA
KO/DPL-1VU3G4C30R3.0-95G 1/2 male528FKMLED display, 2 open collector PNP
KO/DPL-1VU3G4C34P3.0-95G 1/2 male528FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU3S4K0003.0-95Hose barbs, 1/2 PVC528FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU3S4C30R3.0-95Hose barbs, 1/2 PVC528FKMLED display, 2 open collector PNP
KO/DPL-1VU3S4F3003.0-95Hose barbs, 1/2 PVC528FKMFreq. Output, open collector PNP
KO/DPL-1VU3S4L3433.0-95Hose barbs, 1/2 PVC528FKM4-20 mA output
KO/DPL-1VU3S4C34P3.0-95Hose barbs, 1/2 PVC528FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU3S4Z3403.0-95Hose barbs, 1/2 PVC528FKM240° pointer, 4-20 mA
KO/DPL-1VU4G4K0006.0-190G 1/2 male300FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU4G4L3436.0-190G 1/2 male300FKM4-20 mA output
KO/DPL-1VU4G4F3006.0-190G 1/2 male300FKMFreq. Output, open collector PNP
KO/DPL-1VU4G4C30R6.0-190G 1/2 male300FKMLED display, 2 open collector PNP
KO/DPL-1VU4G4C34P6.0-190G 1/2 male300FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU4S4K0006.0-190Hose barbs, 1/2 PVC300FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU4G4Z3406.0-190G 1/2 male300FKM240° pointer, 4-20 mA
KO/DPL-1VU4S4F3006.0-190Hose barbs, 1/2 PVC300FKMFreq. Output, open collector PNP
KO/DPL-1VU4S4C34P6.0-190Hose barbs, 1/2 PVC300FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU4S4C30R6.0-190Hose barbs, 1/2 PVC300FKMLED display, 2 open collector PNP
KO/DPL-1VU4S4L3436.0-190Hose barbs, 1/2 PVC300FKM4-20 mA output
KO/DPL-1VU5G4L34316-400G 1/2 male399FKM4-20 mA output
KO/DPL-1VU5G4F30016-400G 1/2 male399FKMFreq. Output, open collector PNP
KO/DPL-1VU4S4Z3406.0-190Hose barbs, 1/2 PVC300FKM240° pointer, 4-20 mA
KO/DPL-1VU5G4K00016-400G 1/2 male399FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU5G4C34P16-400G 1/2 male399FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU5G4Z34016-400G 1/2 male399FKM240° pointer, 4-20 mA
KO/DPL-1VU5S4K00016-400Hose barbs, 1/2 PVC399FKMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1VU5G4C30R16-400G 1/2 male399FKMLED display, 2 open collector PNP
KO/DPL-1VU5S4L34316-400Hose barbs, 1/2 PVC399FKM4-20 mA output
KO/DPL-1VU5S4C30R16-400Hose barbs, 1/2 PVC399FKMLED display, 2 open collector PNP
KO/DPL-1VU5S4F30016-400Hose barbs, 1/2 PVC399FKMFreq. Output, open collector PNP
KO/DPL-1VU5S4C34P16-400Hose barbs, 1/2 PVC399FKMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1VU5S4Z34016-400Hose barbs, 1/2 PVC399FKM240° pointer, 4-20 mA
KO/DPL-1EU1G4K0000.4-8.0G 1/2 male272EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU1G4L3430.4-8.0G 1/2 male272EPDM4-20 mA output
KO/DPL-1EU1G4F3000.4-8.0G 1/2 male272EPDMFreq. Output, open collector PNP
KO/DPL-1EU1G4C30R0.4-8.0G 1/2 male272EPDMLED display, 2 open collector PNP
KO/DPL-1EU1G4C34P0.4-8.0G 1/2 male272EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU1G4Z3400.4-8.0G 1/2 male272EPDM240° pointer, 4-20 mA
KO/DPL-1EU1S4K0000.4-8.0Hose barbs, 1/2 PVC272EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU1S4L3430.4-8.0Hose barbs, 1/2 PVC272EPDM4-20 mA output
KO/DPL-1EU1S4F3000.4-8.0Hose barbs, 1/2 PVC272EPDMFreq. Output, open collector PNP
KO/DPL-1EU1S4C30R0.4-8.0Hose barbs, 1/2 PVC272EPDMLED display, 2 open collector PNP
KO/DPL-1EU1S4C34P0.4-8.0Hose barbs, 1/2 PVC272EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU1S4Z3400.4-8.0Hose barbs, 1/2 PVC272EPDM240° pointer, 4-20 mA
KO/DPL-1EU2G4F3000.8-28G 1/2 male471EPDMFreq. Output, open collector PNP
KO/DPL-1EU2G4K0000.8-28G 1/2 male471EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU2G4L3430.8-28G 1/2 male471EPDM4-20 mA output
KO/DPL-1EU2G4C30R0.8-28G 1/2 male471EPDMLED display, 2 open collector PNP
KO/DPL-1EU2S4K0000.8-28Hose barbs, 1/2 PVC471EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU2G4C34P0.8-28G 1/2 male471EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU2G4Z3400.8-28G 1/2 male471EPDM240° pointer, 4-20 mA
KO/DPL-1EU2S4C30R0.8-28Hose barbs, 1/2 PVC471EPDMLED display, 2 open collector PNP
KO/DPL-1EU2S4C34P0.8-28Hose barbs, 1/2 PVC471EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU2S4L3430.8-28Hose barbs, 1/2 PVC471EPDM4-20 mA output
KO/DPL-1EU2S4F3000.8-28Hose barbs, 1/2 PVC471EPDMFreq. Output, open collector PNP
KO/DPL-1EU3G4F3003.0-95G 1/2 male528EPDMFreq. Output, open collector PNP
KO/DPL-1EU3G4L3433.0-95G 1/2 male528EPDM4-20 mA output
KO/DPL-1EU2S4Z3400.8-28Hose barbs, 1/2 PVC471EPDM240° pointer, 4-20 mA
KO/DPL-1EU3G4K0003.0-95G 1/2 male528EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU3G4Z3403.0-95G 1/2 male528EPDM240° pointer, 4-20 mA
KO/DPL-1EU3G4C34P3.0-95G 1/2 male528EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU3G4C30R3.0-95G 1/2 male528EPDMLED display, 2 open collector PNP
KO/DPL-1EU3S4K0003.0-95Hose barbs, 1/2 PVC528EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU3S4L3433.0-95Hose barbs, 1/2 PVC528EPDM4-20 mA output
KO/DPL-1EU3S4F3003.0-95Hose barbs, 1/2 PVC528EPDMFreq. Output, open collector PNP
KO/DPL-1EU3S4C34P3.0-95Hose barbs, 1/2 PVC528EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU3S4C30R3.0-95Hose barbs, 1/2 PVC528EPDMLED display, 2 open collector PNP
KO/DPL-1EU4G4F3006.0-190G 1/2 male300EPDMFreq. Output, open collector PNP
KO/DPL-1EU4G4K0006.0-190G 1/2 male300EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU4G4L3436.0-190G 1/2 male300EPDM4-20 mA output
KO/DPL-1EU3S4Z3403.0-95Hose barbs, 1/2 PVC528EPDM240° pointer, 4-20 mA
KO/DPL-1EU4G4C30R6.0-190G 1/2 male300EPDMLED display, 2 open collector PNP
KO/DPL-1EU4G4Z3406.0-190G 1/2 male300EPDM240° pointer, 4-20 mA
KO/DPL-1EU4S4K0006.0-190Hose barbs, 1/2 PVC300EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU4G4C34P6.0-190G 1/2 male300EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU4S4F3006.0-190Hose barbs, 1/2 PVC300EPDMFreq. Output, open collector PNP
KO/DPL-1EU4S4C30R6.0-190Hose barbs, 1/2 PVC300EPDMLED display, 2 open collector PNP
KO/DPL-1EU4S4C34P6.0-190Hose barbs, 1/2 PVC300EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU4S4L3436.0-190Hose barbs, 1/2 PVC300EPDM4-20 mA output
KO/DPL-1EU5G4L34316-400G 1/2 male399EPDM4-20 mA output
KO/DPL-1EU5G4K00016-400G 1/2 male399EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU4S4Z3406.0-190Hose barbs, 1/2 PVC300EPDM240° pointer, 4-20 mA
KO/DPL-1EU5G4F30016-400G 1/2 male399EPDMFreq. Output, open collector PNP
KO/DPL-1EU5G4C34P16-400G 1/2 male399EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU5G4C30R16-400G 1/2 male399EPDMLED display, 2 open collector PNP
KO/DPL-1EU5S4K00016-400Hose barbs, 1/2 PVC399EPDMFreq. Output, open collector NPN, 5ft cable
KO/DPL-1EU5G4Z34016-400G 1/2 male399EPDM240° pointer, 4-20 mA
KO/DPL-1EU5S4L34316-400Hose barbs, 1/2 PVC399EPDM4-20 mA output
KO/DPL-1EU5S4F30016-400Hose barbs, 1/2 PVC399EPDMFreq. Output, open collector PNP
KO/DPL-1EU5S4C30R16-400Hose barbs, 1/2 PVC399EPDMLED display, 2 open collector PNP
KO/DPL-1EU5S4C34P16-400Hose barbs, 1/2 PVC399EPDMLED display, 4-20 mA, 1 open collector PNP
KO/DPL-1EU5S4Z34016-400Hose barbs, 1/2 PVC399EPDM240° pointer, 4-20 mA
Sorry, no products were found fitting that criteria. Please widen your search or reset item filters now
