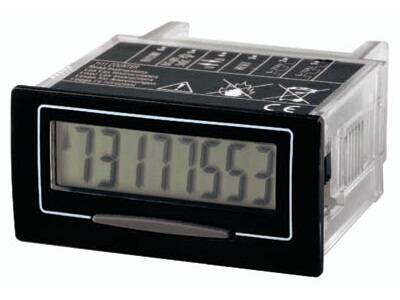

KAL-D06 8 Digit Electronic Counter – Trumeter / KEP


The KAL-D06 counters are small (1.59” x 0.95”), lithium battery powered, totalizing counters that are panel mounted. The counters are designed as replacements for standard electro-mechanical counters. They use the latest custom CMOS technology and incorporate an 8 digit, 0.354” (9mm) high, LCD display.

It operates from a long life lithium battery (life 10 years) and can be operated from contact closure or high speed electronic devices. No separate alkaline batteries are required.

  • Low speed input for contact closures
  • High speed input sinks 18V max
  • Optional quadrature & high voltage inputs
  • 10 year lithium battery – no external power needed
  • NEMA 4X (IP65) front
  • UL recognized

Catalog Page 42                                     KAL_D06-Datasheet

This product is currently out of stock and unavailable.

products found
Item # Item Name Rating Ship From Country Minimum Order
KAL-D068 digit counter with 10 yr batteryFALSEUS1
KAL-DQUAD068 digit counter with 10 yr battery & Quadrature InputFALSEUS1
KAL-D06AC/DC8 digit counter with 10 yr battery & High Voltage InputFALSEUS1
