Hioki Meter Relays

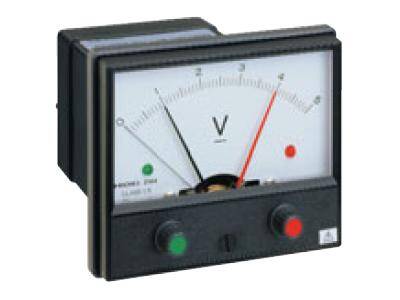

Hioki Meter Relays are industrial 1-channel devices to assist in energy saving and automation implementations. The 2103 series (3.31”, 84mm) and 2104 (4.09”, 104mm) are 1-channel meter relays featuring a sensitive 1 µA, 10 mV DC movement and a customizable scale. The 2103 is ±2.5% class and the 2104 is ±1.5% class.

  • Electronic Design for High Accuracy and Repeatability
  • Ultra-sensitive 1 µA, 10 mV DC Movements
  • Illuminated Dial
  • One or Two Form C (SPDT) Relays
  • Relay Operation Delayed at Power-up
Hioki 2103 2104 specs

Catalog Page 079                          Hioki-2103_2104

Configure Product

Hioki Meter Relays

Reset Form
View Result
Contact Type
Power Supply
Self-contained ranges. For >20A DC, use 50mV meter & external shunt. For >5A AC, use 5A meter & external CT.
List Scale and Legend if Different from Input.
