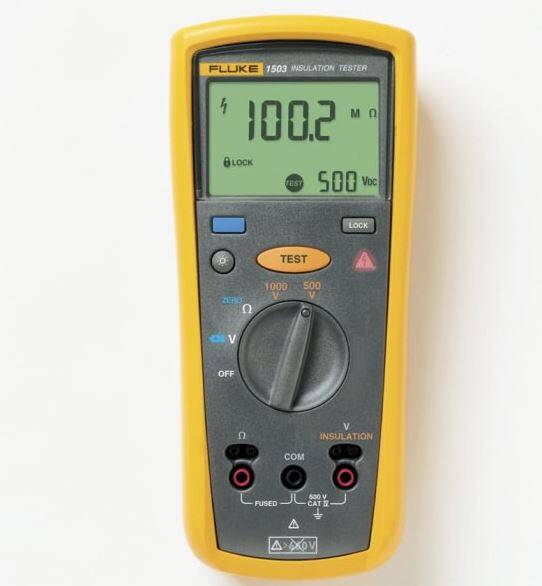

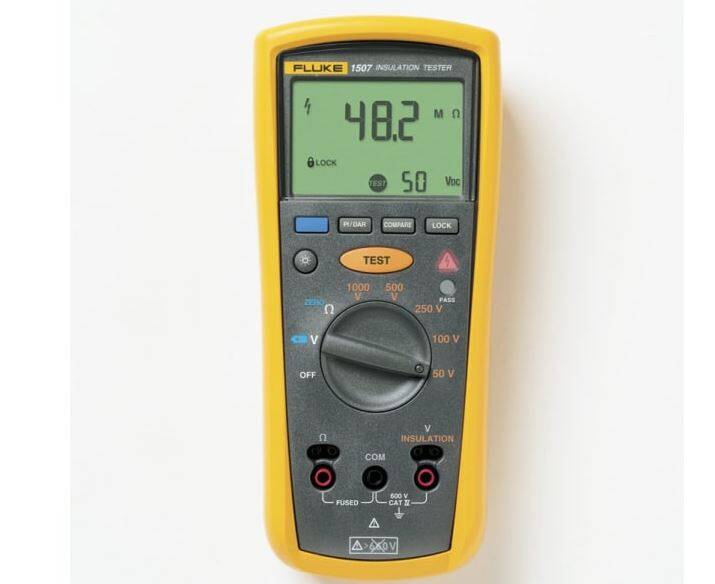

Fluke Handheld MegOhmMeter

Description

The Fluke 1507 and 1503 megohmmeter/insulation resistance testers, 600V, 0.1MΩ to 2GΩ (1503) and .01MΩ to 10GΩ (1507), are compact, rugged, reliable and easy to use. With their multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additional features on the tools save both time and money when performing tests. They offer great performance for an exceptional value.

Insulation test range:

  • 1507: 0.01 MΩ to 10 GΩ
  • 1503: 0.1 MΩ to 2000 MΩ

Insulation test voltages:

  • 1507: 50 V, 100 V, 250 V, 500 V, 1000 V
  • 1503: 500 V, 1000 V



  • Automatic calculation of Polarization Index and Dielectric Absorption Ratio
  • Repetitive tests compare (Pass/Fail) function (only available on the 1507)
  • Live circuit detection prevents insulation test if voltage > 30 V is detected
  • Auto-discharge of capacitive voltage for added user protection
  • AC/DC voltage: 0.1 V to 600 V
  • 200 mA Continuity
  • Resistance: 0.01 Ω to 20.00 KΩ
  • Save battery power with auto power off
  • Read measurements easily with
  • large, backlit display
  • CAT IV 600 V overvoltage category rating for added user protection
  • Remote probe, test leads, probes and alligator clips included with each tester
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
  • One-year warranty

Catalog-Page-154                                 1503-1504-Datasheet

This product is currently out of stock and unavailable.


products found
Item # Description
Fluke 15031kV Handheld Insulation Resitance Tester
Fluke 1507Deluxe 1kV Handheld Insulation Resitance Tester
