HA Type DC Ammeter Shunts – Weschler

Description

HA Type is small DC shunts with an insulating base.  They are normally mounted to a panel or inside an enclosure.  The base can be removed for busbar mounting. Input ranges available are 1 to 500 DC Amperes with a 50mV or 100mV output.

  • 1 to 500 DC Amperes.
  • Accuracy: 1/4%
  • Recommended continuous operation: <2/3 rated current

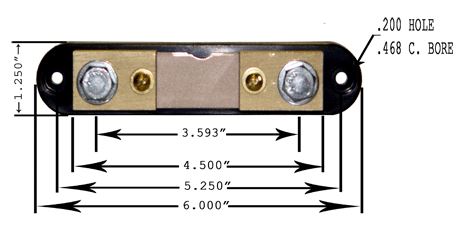

Size: 6.0″ x 1.25″
Mounting: 5.25″ C-C

DC Ammeter Shunts

Catalog-Page-89

Clear
SKU: N/A Categories: , , ,
Show Advanced Filters

products found
Item # Amp Type Price
HA-400-100400100 mV$45.43
HA-400-5040050 mV$45.28
HA-250-100250100 mV$45.53
HA-250-5025050 mV$41.25
HA-150-100150100 mV$41.74
HA-150-5015050 mV$36.76
HA-1-1001100 mV$48.45
HA-10-10010100 mV$41.74
HA-200-5020050 mV$36.76
HA-20-10020100 mV$41.74
HA-2-50250 mV$36.76
HA-50-10050100 mV$41.74
HA-5-1005100 mV$41.74
HA-5-50550 mV$36.76
HA-2-1002100 mV$41.74
HA-100-100100100 mV$41.74
HA-300-5030050 mV$41.25
HA-200-100200100 mV$41.74
HA-10-501050 mV$36.76
HA-100-5010050 mV$36.76
HA-300-100300100 mV$45.43
HA-20-502050 mV$36.76
HA-500-100500100 mV$45.43
HA-500-5050050 mV$45.25
HA-50-505050 mV$36.76
HA-1-50150 mV$42.69
