Description

Fusion-IP Ethernet Input Displays clearly show important information from a distance. These very large displays accepts an Ethernet/IP or Modbus TCP input. Their analog and digital outputs can be directly connected to a PLC or other automation equipment. The Fusion-IP is ideal for showing information from a factory process. The clear, high contrast display has adjustable brightness to suit all viewing environments.

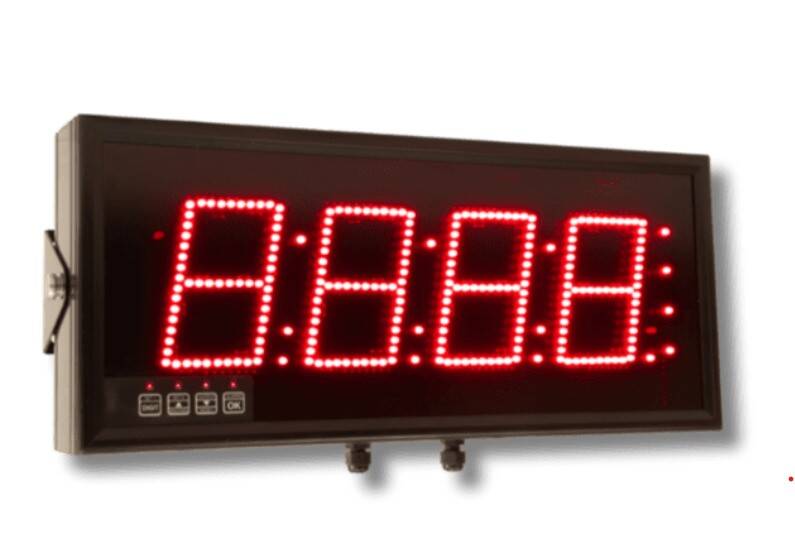

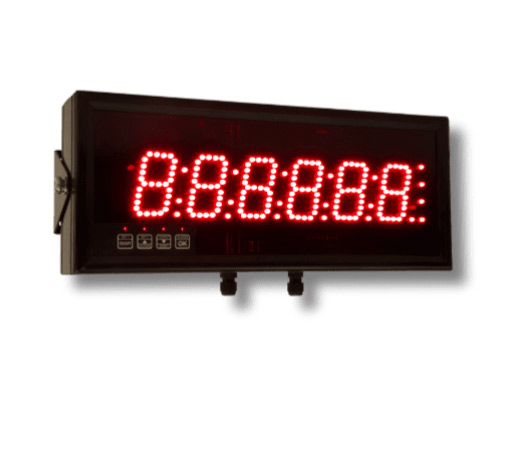

Fusion 4- and 6-digit models are available in 5 colors & 2 intensity levels:
2” and 4” character height – green, red or yellow
6” and above – blue, green, red, white or yellow
Standard brightness (indoor) or high-intensity (outdoor) displays.

Features

• • EtherNet/IP Adapter Level 2 and Level 3 I/O Server CIP
  • Modbus TCP class 0, class 1 and partially class 2 device/slave functionality
  • IP65 RJ45 Connection
  • All common baud rates are accepted
  • Fully sealed IP65 all round
  • Viewing distances available from 25m up to 200m
  • AC or DC powered
  • Wall, Suspension or panel mounting
  • Alarm output relays, analog output and comms output options

Digit Height

• 2” (57 mm) for up to 25 meters viewing
• 4” (102mm) for up to 50 meters viewing
• 6” (150mm) for up to 75 meters viewing
• 8” (200mm) for up to 100 meters viewing
• 12” (300mm) for up to 140 meters viewing
• 16” (400mm) for up to 200 meters viewing

For large displays with RS-232, RS-485 & Modbus RTU input, see the Fusion Meter listing.
