Fluke Compact Multimeters 110 Series

Description

The Fluke 110 series of compact multimeters displays True-RMS voltage and current readings with 6000 count resolution, and tests continuity and resistance. A large white LED backlight aids work in poorly lit areas. And its easy-open battery access door makes battery changes easy. A great choice for everyday troubleshooting, the Fluke 110 series Electrical Multimeter are CAT III 600 V safety rated and is a compact True-RMS meter.

Fluke 114 digital multimeter is the ideal choice for go/no-go testing. Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.

Fluke 115 is the compact, general purpose troubleshooting tool for field service technicians. For general purpose electrical and electronic test requirements, the Fluke 115 True RMS digital multimeter provides the perfect answer. Its simple, one-handed operation and compact design meets the needs of a wide variety of field service technicians. It measures True RMS voltage and current with 6000 count resolution as well as resistance, continuity, frequency and capacitance for quick verifications.

Fluke 116 DMM provides the features you need to quickly troubleshoot HVAC equipment. The Fluke 116 was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.

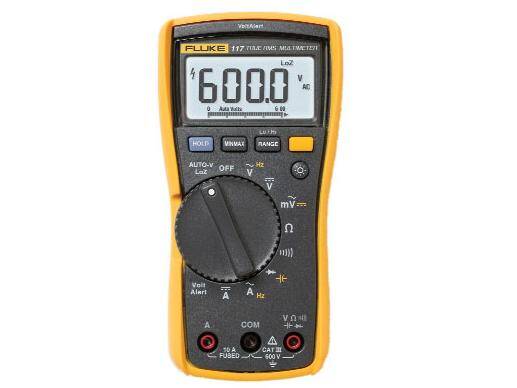

Fluke 117 Digital Multimeter includes integrated non-contact voltage detection to help get the job done faster Designed by electricians and engineered by Fluke, the Fluke 117 is a compact True-RMS meter for demanding applications like commercial buildings, hospitals, and schools. With its integrated non-contact voltage detection, Auto Volts and LoZ functions that help prevent false readings caused by ghost voltage, the Fluke 117 is a great choice for electricians. In fact, users around the world have said their 117 is an investment in accuracy. The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance. Plus, its easy-to-use interface can save you time and enable you to move from job to job more quickly.

These little meters pack more features than some DMMs twice their size:

  • True-rms ac voltage and current measurement for accurate readings on all waveforms
  • 6000-count display provides improved resolution
  • Min/Max/Average feature captures signal fluctuations
  • Frequency, capacitance and diode test capabilities (except 114)
  • White LED backlight for excellent visibility
  • Fast continuity test detects intermittent connections
  • IEC CAT III 600V safety rating
  • Auto-Volt automatic ac/dc voltage selection

Additional Model 116 features:

  • °F/°C temperature function for HVAC troubleshooting
  • 600µA ac & dc ranges for testing flame sensors

Every Fluke 110 Series meter comes with a protective holster, TL75 test leads, 9V battery (installed) and manual.

Approvals: UL, CSA, CE, TUV, VDE

Catalog Page 141                    114-115-116-117-datasheet

This product is currently out of stock and unavailable.


products found
Item # Description
Fluke-117Digital Multimeter with Non-Contact Voltage for Electrician's
Fluke-116HVAC Multimeter with Temperature and Microamps
Fluke-115Digital Multimeter with True RMS for Field Service Technicians
Fluke-114Electrical True RMS Multimeter, 600V
