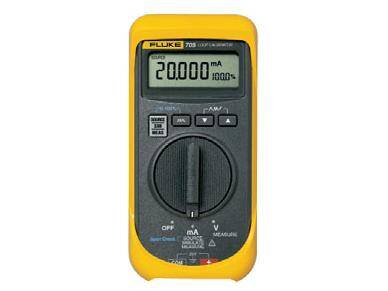

Fluke 705 Loop Calibrator


The Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops. Large display and simple, quick-click interface for easy one-handed operation. Simultaneous mA and % readout for quick, easy interpretation of readings.

  • Simultaneous mA and % Readout
  • Fast “Span Check”
  • Selectable Slow Ramp, Fast Ramp & Step
  • 24V Internal Loop Supply
  • Approvals: CE, CSA
Fluke 705 Specs

Catalog Page 167                   705-707-715-DS

This product is currently out of stock and unavailable.

products found
Item # Voltage Measurement Current Measurement Current Sourcing Drive Capability Loop Power While Measuring mA
Fluke 7050-28 V dc, Resolution: 0.001V, Accuracy: 0.025% Rdg + 1 LSD0-24 mA, Resolution: 0.001 mA, Accuracy: 0.02% Rdg + 2 LSD0-20 mA or 4-20 mA, Accuracy: 0.025% Rdg + 2 LSD Will over- range to 24 mA1000ohm at 24 mA24 V
