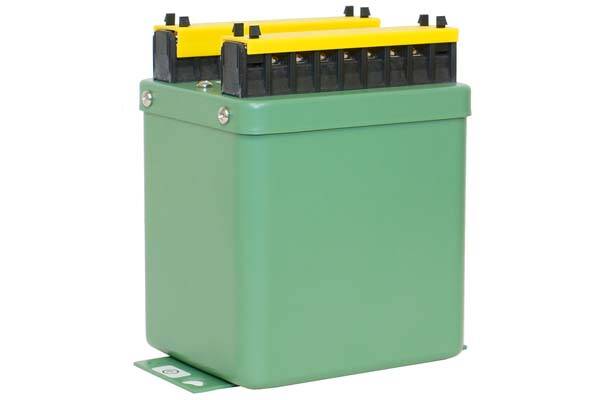

Flex-Core AC Power Transducers

Description

These FlexCore AC Watt, VAR or Watt/VAR transducers measure AC power in 1, 2, 2½, or 3 element system configurations.

- 150, 300 & 600V input
- 60 or 50Hz
- DC mA or Voltage Output
- External or Self Powered
- Accuracy 0.2%

Can be used with current transformer

5 Amp input and 60Hz part numbers are shown below.
Add suffix -50 for 50Hz models.
Add suffix -22 for 230VAC instrument power.
Add suffix -W for fast 50ms response time.

See data sheet for models with 1A, 10A or 20A current input.

Flexcore-GWV-data

Watt/Watthour and VAR/VARhour transducers also available.

AC Input

Full Scale

System

Power

DC Output

Clear

SKU: N/A Categories: Flexcore, Power Transducers, Power Transducers

Show Advanced Filters

products found

Item #	AC Input	Full Scale	System	Power	DC Output
GV5-001EM	0-150V / 0-5A	500VAR	1ph, 2W, 1E	85-135V	4-12-20mA
GV5-002EM	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	85-135V	4-12-20mA
GV5-003EM	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	85-135V	4-12-20mA
GV5-004EM	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	85-135V	4-12-20mA
GV5-005EM	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	85-135V	4-12-20mA
GV5-006EM	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	85-135V	4-12-20mA
GV5-007EM	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	85-135V	4-12-20mA
GV5-008EM	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	85-135V	4-12-20mA
GV5-7.5EM	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	85-135V	4-12-20mA
GV5-8.5EM	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	85-135V	4-12-20mA
GW5-001EM	0-150V / 0-5A	500W	1ph, 2W, 1E	85-135V	4-12-20mA
GW5-002EM	0-300V / 0-5A	1kW	1ph, 2W, 1E	85-135V	4-12-20mA
GW5-003EM	0-600V / 0-5A	2kW	1ph, 2W, 1E	85-135V	4-12-20mA
GW5-004EM	0-150V / 0-5A	1kW	3ph, 3W, 2E	85-135V	4-12-20mA
GW5-005EM	0-300V / 0-5A	2kW	3ph, 3W, 2E	85-135V	4-12-20mA
GW5-006EM	0-600V / 0-5A	4kW	3ph, 3W, 2E	85-135V	4-12-20mA
GW5-007EM	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	85-135V	4-12-20mA
GW5-008EM	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	85-135V	4-12-20mA
GW5-7.5EM	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	85-135V	4-12-20mA
GW5-8.5EM	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	85-135V	4-12-20mA
GWV5-001B	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	+/-1mA
GWV5-001D	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	+/-10V
GWV5-001E	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	4-20mA
GWV5-001EM	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	4-12-20mA
GWV5-001X5	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	+/-5V
GWV5-002A	0-300V / 0-5A	1000W/VAR	1ph, 2W, 1E	self	+/-1mA
GWV5-002C	0-300V / 0-5A	1000W/VAR	1ph, 2W, 1E	self	+/-10V
GWV5-002CX5	0-300V / 0-5A	1000W/VAR	1ph, 2W, 1E	self	+/-5V
GWV5-002EG	0-300V / 0-5A	1000W/VAR	1ph, 2W, 1E	self	4-20mA
GWV5-004B	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	+/-1mA
GWV5-004D	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	+/-10V
GWV5-004E	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	4-20mA
GWV5-004EM	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	4-12-20mA
GWV5-004X5	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	+/-5V
GWV5-007B	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	+/-1mA
GWV5-007D	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	+/-10V
GWV5-007E	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	4-20mA
GWV5-007EM	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	4-12-20mA
GWV5-007X5	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	+/-5V
GWV5-008D	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	+/-10V
GWV5-008E	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	4-20mA
GWV5-008EM	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	4-12-20mA
GWV5-008X5	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	+/-5V
GWV5-005A	0-300V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	+/-1mA
GWV5-005C	0-300V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	+/-10V
GWV5-005EG	0-300V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	4-20mA
GWV5-005CX5	0-300V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	+/-5V
GWV5-008A	0-300V L-N / 0-5A	3000W/VAR	3ph, 4W, 3E	self	+/-1mA
GWV5-008C	0-300V L-N / 0-5A	3000W/VAR	3ph, 4W, 3E	self	+/-10V
GWV5-008EG	0-300V L-N / 0-5A	3000W/VAR	3ph, 4W, 3E	self	4-20mA
GWV5-008CX5	0-300V L-N / 0-5A	3000W/VAR	3ph, 4W, 3E	self	+/-5V
GWV5-003A	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	self	+/-1mA
GWV5-003C	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	self	+/-10V
GWV5-003EG	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	self	4-20mA
GWV5-003CX5	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	self	+/-5V
GWV5-003B	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	85-135V	+/-1mA
GWV5-003D	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	85-135V	+/-10V
GWV5-003E	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	85-135V	4-20mA
GWV5-003EM	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	85-135V	4-12-20mA
GWV5-003X5	0-600V / 0-5A	2000W/VAR	1ph, 2W, 1E	85-135V	+/-5V
GWV5-006A	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	self	+/-1mA
GW5-002D	0-300V / 0-5A	1kW	1ph, 2W, 1E	85-135V	+/-10V
GWV5-006C	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	self	+/-10V
GW5-002E	0-300V / 0-5A	1kW	1ph, 2W, 1E	85-135V	4-20mA
GW5-002X5	0-300V / 0-5A	1kW	1ph, 2W, 1E	85-135V	+/-5V
GWV5-006EG	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	self	4-20mA
GW5-003A	0-600V / 0-5A	2kW	1ph, 2W, 1E	self	+/-1mA
GW5-003C	0-600V / 0-5A	2kW	1ph, 2W, 1E	self	+/-10V
GWV5-006CX5	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	self	+/-5V
GW5-003EG	0-600V / 0-5A	2kW	1ph, 2W, 1E	self	4-20mA
GW5-003EMG	0-600V / 0-5A	2kW	1ph, 2W, 1E	self	4-12-20mA
GWV5-006B	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	85-135V	+/-1mA
GW5-003CX5	0-600V / 0-5A	2kW	1ph, 2W, 1E	self	+/-5V
GW5-003B	0-600V / 0-5A	2kW	1ph, 2W, 1E	85-135V	+/-1mA
GWV5-006D	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	85-135V	+/-10V
GW5-003D	0-600V / 0-5A	2kW	1ph, 2W, 1E	85-135V	+/-10V
GW5-003E	0-600V / 0-5A	2kW	1ph, 2W, 1E	85-135V	4-20mA
GWV5-006E	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	85-135V	4-20mA
GW5-003X5	0-600V / 0-5A	2kW	1ph, 2W, 1E	85-135V	+/-5V
GW5-004A	0-150V / 0-5A	1kW	3ph, 3W, 2E	self	+/-1mA
GWV5-006EM	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	85-135V	4-12-20mA
GW5-004C	0-150V / 0-5A	1kW	3ph, 3W, 2E	self	+/-10V
GW5-004EG	0-150V / 0-5A	1kW	3ph, 3W, 2E	self	4-20mA
GWV5-006X5	0-600V / 0-5A	4000W/VAR	3ph, 3W, 2E	85-135V	+/-5V
GW5-001A	0-150V / 0-5A	500W	1ph, 2W, 1E	self	+/-1mA
GW5-001C	0-150V / 0-5A	500W	1ph, 2W, 1E	self	+/-10V
GW5-001EG	0-150V / 0-5A	500W	1ph, 2W, 1E	self	4-20mA
GW5-001EMG	0-150V / 0-5A	500W	1ph, 2W, 1E	self	4-12-20mA
GW5-001CX5	0-150V / 0-5A	500W	1ph, 2W, 1E	self	+/-5V
GW5-001B	0-150V / 0-5A	500W	1ph, 2W, 1E	85-135V	+/-1mA
GW5-001D	0-150V / 0-5A	500W	1ph, 2W, 1E	85-135V	+/-10V
GW5-001E	0-150V / 0-5A	500W	1ph, 2W, 1E	85-135V	4-20mA
GW5-001X5	0-150V / 0-5A	500W	1ph, 2W, 1E	85-135V	+/-5V
GW5-002A	0-300V / 0-5A	1kW	1ph, 2W, 1E	self	+/-1mA
GW5-002C	0-300V / 0-5A	1kW	1ph, 2W, 1E	self	+/-10V
GW5-002EG	0-300V / 0-5A	1kW	1ph, 2W, 1E	self	4-20mA
GW5-002EMG	0-300V / 0-5A	1kW	1ph, 2W, 1E	self	4-12-20mA
GW5-002CX5	0-300V / 0-5A	1kW	1ph, 2W, 1E	self	+/-5V
GW5-002B	0-300V / 0-5A	1kW	1ph, 2W, 1E	85-135V	+/-1mA
GW5-004EMG	0-150V / 0-5A	1kW	3ph, 3W, 2E	self	4-12-20mA
GW5-004CX5	0-150V / 0-5A	1kW	3ph, 3W, 2E	self	+/-5V
GW5-004B	0-150V / 0-5A	1kW	3ph, 3W, 2E	85-135V	+/-1mA
GW5-004D	0-150V / 0-5A	1kW	3ph, 3W, 2E	85-135V	+/-10V
GW5-004E	0-150V / 0-5A	1kW	3ph, 3W, 2E	85-135V	4-20mA
GW5-004X5	0-150V / 0-5A	1kW	3ph, 3W, 2E	85-135V	+/-5V
GW5-005A	0-300V / 0-5A	2kW	3ph, 3W, 2E	self	+/-1mA
GW5-005C	0-300V / 0-5A	2kW	3ph, 3W, 2E	self	+/-10V
GW5-005EG	0-300V / 0-5A	2kW	3ph, 3W, 2E	self	4-20mA
GW5-005EMG	0-300V / 0-5A	2kW	3ph, 3W, 2E	self	4-12-20mA
GW5-005CX5	0-300V / 0-5A	2kW	3ph, 3W, 2E	self	+/-5V
GW5-005B	0-300V / 0-5A	2kW	3ph, 3W, 2E	85-135V	+/-1mA
GW5-005D	0-300V / 0-5A	2kW	3ph, 3W, 2E	85-135V	+/-10V
GW5-005E	0-300V / 0-5A	2kW	3ph, 3W, 2E	85-135V	4-20mA
GW5-005X5	0-300V / 0-5A	2kW	3ph, 3W, 2E	85-135V	+/-5V
GW5-006A	0-600V / 0-5A	4kW	3ph, 3W, 2E	self	+/-1mA
GW5-006C	0-600V / 0-5A	4kW	3ph, 3W, 2E	self	+/-10V
GW5-006EG	0-600V / 0-5A	4kW	3ph, 3W, 2E	self	4-20mA
GW5-006EMG	0-600V / 0-5A	4kW	3ph, 3W, 2E	self	4-12-20mA
GW5-006CX5	0-600V / 0-5A	4kW	3ph, 3W, 2E	self	+/-5V
GW5-006B	0-600V / 0-5A	4kW	3ph, 3W, 2E	85-135V	+/-1mA
GW5-006D	0-600V / 0-5A	4kW	3ph, 3W, 2E	85-135V	+/-10V
GW5-006E	0-600V / 0-5A	4kW	3ph, 3W, 2E	85-135V	4-20mA
GW5-006X5	0-600V / 0-5A	4kW	3ph, 3W, 2E	85-135V	+/-5V
GW5-007A	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	self	+/-1mA
GW5-007C	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	self	+/-10V
GW5-007EG	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	self	4-20mA
GW5-007EMG	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	self	4-12-20mA
GW5-007CX5	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	self	+/-5V
GW5-007B	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	85-135V	+/-1mA
GW5-007D	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	85-135V	+/-10V
GW5-007E	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	85-135V	4-20mA
GW5-007X5	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 3E	85-135V	+/-5V
GW5-008A	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	self	+/-1mA
GW5-008C	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	self	+/-10V
GW5-008EG	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	self	4-20mA
GW5-008EMG	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	self	4-12-20mA
GW5-008CX5	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	self	+/-5V
GW5-008B	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	85-135V	+/-1mA
GW5-008D	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	85-135V	+/-10V
GW5-008E	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	85-135V	4-20mA
GW5-008X5	0-300V L-N / 0-5A	3kW	3ph, 4W, 3E	85-135V	+/-5V
GW5-7.5A	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	self	+/-1mA
GW5-7.5C	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	self	+/-10V
GW5-7.5EG	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	self	4-20mA
GW5-7.5EMG	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	self	4-12-20mA
GW5-7.5CX5	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	self	+/-5V
GW5-7.5B	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	85-135V	+/-1mA
GW5-7.5D	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	85-135V	+/-10V
GW5-7.5E	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	85-135V	4-20mA
GW5-7.5X5	0-150V L-N / 0-5A	1.5kW	3ph, 4W, 2.5E	85-135V	+/-5V
GW5-8.5A	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	self	+/-1mA
GW5-8.5C	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	self	+/-10V
GW5-8.5EG	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	self	4-20mA
GW5-8.5EMG	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	self	4-12-20mA
GW5-8.5CX5	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	self	+/-5V
GW5-8.5B	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	85-135V	+/-1mA
GW5-8.5D	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	85-135V	+/-10V
GW5-8.5E	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	85-135V	4-20mA
GW5-8.5X5	0-300V L-N / 0-5A	3kW	3ph, 4W, 2.5E	85-135V	+/-5V
GV5-001A	0-150V / 0-5A	500VAR	1ph, 2W, 1E	self	+/-1mA
GV5-001C	0-150V / 0-5A	500VAR	1ph, 2W, 1E	self	+/-10V
GV5-001EG	0-150V / 0-5A	500VAR	1ph, 2W, 1E	self	4-20mA
GV5-001EMG	0-150V / 0-5A	500VAR	1ph, 2W, 1E	self	4-12-20mA
GV5-001CX5	0-150V / 0-5A	500VAR	1ph, 2W, 1E	self	+/-5V
GV5-001B	0-150V / 0-5A	500VAR	1ph, 2W, 1E	85-135V	+/-1mA
GV5-001D	0-150V / 0-5A	500VAR	1ph, 2W, 1E	85-135V	+/-10V
GV5-001E	0-150V / 0-5A	500VAR	1ph, 2W, 1E	85-135V	4-20mA
GV5-001X5	0-150V / 0-5A	500VAR	1ph, 2W, 1E	85-135V	+/-5V
GV5-002A	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	self	+/-1mA
GV5-002C	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	self	+/-10V
GV5-002EG	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	self	4-20mA
GV5-002EMG	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	self	4-12-20mA
GV5-002CX5	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	self	+/-5V
GV5-002B	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	85-135V	+/-1mA
GV5-002D	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	85-135V	+/-10V
GV5-002E	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	85-135V	4-20mA
GV5-002X5	0-300V / 0-5A	1kVAR	1ph, 2W, 1E	85-135V	+/-5V
GV5-003A	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	self	+/-1mA
GV5-003C	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	self	+/-10V
GV5-003EG	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	self	4-20mA
GV5-003EMG	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	self	4-12-20mA
GV5-003CX5	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	self	+/-5V
GV5-003B	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	85-135V	+/-1mA
GV5-003D	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	85-135V	+/-10V
GV5-003E	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	85-135V	4-20mA
GV5-003X5	0-600V / 0-5A	2kVAR	1ph, 2W, 1E	85-135V	+/-5V
GV5-004A	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	self	+/-1mA
GV5-004C	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	self	+/-10V
GV5-004EG	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	self	4-20mA
GV5-004EMG	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	self	4-12-20mA
GV5-004CX5	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	self	+/-5V
GV5-004B	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	85-135V	+/-1mA
GV5-004D	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	85-135V	+/-10V
GV5-004E	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	85-135V	4-20mA
GV5-004X5	0-150V / 0-5A	1kVAR	3ph, 3W, 2E	85-135V	+/-5V
GV5-005A	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	self	+/-1mA
GV5-005C	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	self	+/-10V
GV5-005EG	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	self	4-20mA
GV5-005EMG	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	self	4-12-20mA
GV5-005CX5	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	self	+/-5V
GV5-005B	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	85-135V	+/-1mA
GV5-005D	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	85-135V	+/-10V
GV5-005E	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	85-135V	4-20mA
GV5-005X5	0-300V / 0-5A	2kVAR	3ph, 3W, 2E	85-135V	+/-5V
GV5-006A	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	self	+/-1mA
GV5-006C	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	self	+/-10V
GV5-006EG	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	self	4-20mA
GV5-006EMG	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	self	4-12-20mA
GV5-006CX5	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	self	+/-5V
GV5-006B	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	85-135V	+/-1mA
GV5-006D	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	85-135V	+/-10V
GV5-006E	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	85-135V	4-20mA
GV5-006X5	0-600V / 0-5A	4kVAR	3ph, 3W, 2E	85-135V	+/-5V
GV5-007A	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	self	+/-1mA
GV5-007C	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	self	+/-10V
GV5-007EG	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	self	4-20mA
GV5-007EMG	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	self	4-12-20mA
GV5-007CX5	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	self	+/-5V
GV5-007B	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	85-135V	+/-1mA
GV5-007D	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	85-135V	+/-10V
GV5-007E	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	85-135V	4-20mA
GV5-007X5	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 3E	85-135V	+/-5V
GV5-008A	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	self	+/-1mA
GV5-008C	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	self	+/-10V
GV5-008EG	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	self	4-20mA
GV5-008EMG	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	self	4-12-20mA
GV5-008CX5	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	self	+/-5V
GV5-008B	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	85-135V	+/-1mA
GV5-008D	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	85-135V	+/-10V
GV5-008E	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	85-135V	4-20mA
GV5-008X5	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 3E	85-135V	+/-5V
GV5-7.5A	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	self	+/-1mA
GV5-7.5C	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	self	+/-10V
GV5-7.5EG	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	self	4-20mA
GV5-7.5EMG	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	self	4-12-20mA
GV5-7.5CX5	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	self	+/-5V
GV5-7.5B	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	85-135V	+/-1mA
GV5-7.5D	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	85-135V	+/-10V
GV5-7.5E	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	85-135V	4-20mA
GV5-7.5X5	0-150V L-N / 0-5A	1.5kVAR	3ph, 4W, 2.5E	85-135V	+/-5V
GV5-8.5A	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	self	+/-1mA
GV5-8.5C	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	self	+/-10V
GV5-8.5EG	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	self	4-20mA
GV5-8.5EMG	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	self	4-12-20mA
GV5-8.5CX5	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	self	+/-5V
GV5-8.5B	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	85-135V	+/-1mA
GV5-8.5D	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	85-135V	+/-10V
GV5-8.5E	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	85-135V	4-20mA
GV5-8.5X5	0-300V L-N / 0-5A	3kVAR	3ph, 4W, 2.5E	85-135V	+/-5V
GWV5-001A	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	self	+/-1mA
GWV5-001C	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	self	+/-10V
GWV5-001EG	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	self	4-20mA
GWV5-001CX5	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	self	+/-5V
GWV5-004A	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	+/-1mA
GWV5-004C	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	+/-10V
GWV5-004EG	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	4-20mA
GWV5-004CX5	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	self	+/-5V
GWV5-007A	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	self	+/-1mA
GWV5-007C	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	self	+/-10V
GWV5-007EG	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	self	4-20mA
GWV5-007CX5	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	self	+/-5V
GWV5-002B	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	+/-1mA
GWV5-002D	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	+/-10V
GWV5-002E	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	4-20mA
GWV5-002EM	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	4-12-20mA
GWV5-002X5	0-150V / 0-5A	500W/VAR	1ph, 2W, 1E	85-135V	+/-5V
GWV5-005B	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	+/-1mA
GWV5-005D	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	+/-10V
GWV5-005E	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	4-20mA
GWV5-005EM	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	4-12-20mA
GWV5-005X5	0-150V / 0-5A	1000W/VAR	3ph, 3W, 2E	85-135V	+/-5V
GWV5-008B	0-150V L-N / 0-5A	1500W/VAR	3ph, 4W, 3E	85-135V	+/-1mA

Sorry, no products were found fitting that criteria. Please widen your search or

Shop by Category

Flex-Core AC Power Transducers

Description

Related products
