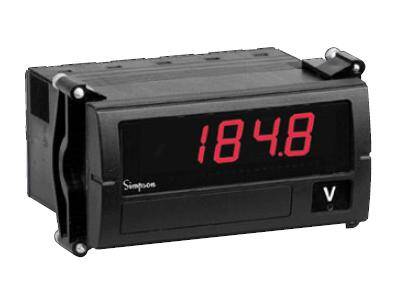

F35/F45 Falcon Digital Panel Meters – Simpson


The Simpson Falcon Series digital panel meters are premium quality 1/8-DIN meters for industrial applications. All Falcon units feature selectable decimal point from the terminal block and display scaling, providing wide application flexibility. In addition, most signal input ranges are easy to change with jumpers on the main board. The Falcon has a 0.56″ bright red LED display for high visibility.

Compactly designed for applications requiring minimal rear panel depth, the Falcon fits a standard 1/8-DIN panel cutout (91.9mm x 45mm) and requires less than 3″ behind the panel. A screw terminal connector is a standard feature for easy wiring of the power supply and signal input connections.

  • Case Size: Standard 1/8 DIN
  • Accuracy: ±0.1% (F35); ±0.02% (F45DCV & Process); ±0.5% (F45DCA); ±0.5% (F45AC)
  • Auto-Zero
  • Choice of AC or DC Power Supplies
  • Broad Range Scaling and Adjustable Zero Offset for Process Inputs
  • User-Selectable Decimal Points
  • Optional Excitation Output 12 VDC or 24 VDC
  • Easy Installation Using Screw Terminals

Catalog Page 021                    Falcon Datasheet

Configure Product

Falcon F35/F45 LED Digital Panel Meters – Simpson

Reset Form
View Result
Basic Unit
Power Supply
9-32 VDC not available for frequency meters
AC TRMS & Frequency available with F35 meters only
Temperature available with F45 meters only
Excitation Output
Display Option
Temperature Meters Only
