PID Controller – Extech


Extech 1/16 DIN & 1/4 DIN Temperature PID Controllers with 4-20mA Output or Two Relay Outputs, Fuzzy Logic PID, Auto Tuning, and Soft Start features.

Temperature PID controller offers Fuzzy Logic enhanced PID and a Soft-Start feature which protects heaters from cold-starts. PID plus Fuzzy Logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The Soft Start feature is ideally suited for processes, such as those employed in the Thermo-Plastics industry, where careful, exact, and slow heating of product is required. Accepts thermocouple and RTD inputs. Single-stage Ramp and Soak program with Ramp-to-Set point Limit that can be combined with the Soft Start feature for critical process demands. Complete with mounting bracket hardware and screw terminals for easy wiring.

  • 1/16 or 1/4 DIN sizes available
  • 4-20mA or Two Realy Outputs
  • Dual 4-digit LED displays for process & setpoint values
  • User-friendly menus and tactile keypad
  • Fuzzy Logic PID offers intuitive control
  • Manual mode overrides automatic control
  • One-touch Auto-Tuning for quick setup and precise control
  • Single-stage Ramp and Soak program with Ramp-to-Setpoint Limit
  • Soft Start feature for smooth process start-up
  • Accepts thermocouple and RTD inputs
  • Select input type from display menu – no hardware change
  • Two ‘Latching’ relays with 8 Alarm modes & advanced Timer modes
  • CE approved

Catalog-Page-6                           Extech-48VFL_96VFL Datasheet

This product is currently out of stock and unavailable.

products found
Item # Description

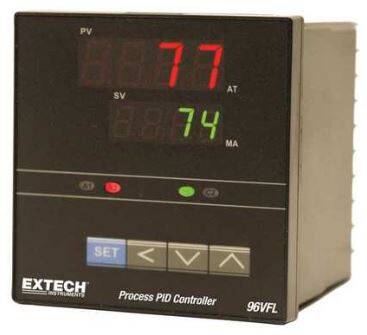

96VFL131/4 DIN Temperature PID Controller with 4-20mA output
96VFL111/4 DIN Temperature PID Controller with two relay outputs

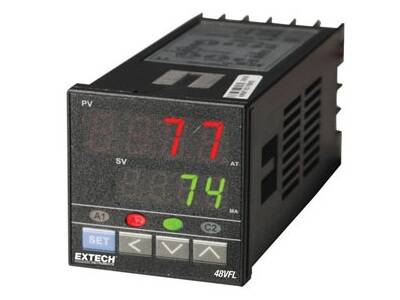

48VFL131/16 DIN Temperature PID Controller with 4-20mA output
48VFL111/16 DIN Temperature PID Controller with one relay output
