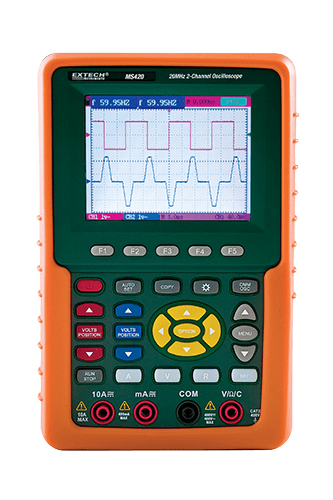

Extech Digital Oscilloscope – MS420

Description

Extech’s MS420 is a Dual channel 20MHz Oscilloscope with 3.8″ color LCD display. It offers a range of capabilities for effective troubleshooting of electronically controlled systems. With 20 MHz bandwidth and conveniences like auto-set which optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform, the MS420 can be used in field repairs or bench duty. To identify subtle problems, Peak Detect features a fast 50 ns glitch capture. Core functions like XY Mode, FFT function, Trigger Hold off, Waveform Math, Averaging Mode and Persistence Mode all ensure you can confidently troubleshoot problems using a variety of approaches. To start recurring tests, you can store and recall up to 4 waveform screens and setups to save time from job to job. This CAT II-rated oscilloscope includes complete DMM functions that are displayed on the large 3. 8″ (97mm) color LCD display.

  • Auto-set function optimizes the position, range, timebase, and triggering to assure a stable display of waveforms
  • Peak Detect function for 50ns glitch capture
  • XY Mode and FFT function to view component frequencies
  • Twenty Automatic Measurements including Frequency, Cycle, Average, Peak to Peak, RMS and more
  • Waveform Math: Add, Subtract, Multiply, and Divide
  • Average Mode for smoothing waveforms
  • Persistence Mode for observing dynamic signals
  • Store and recall up to 4 waveform screens and setups
  • USB interface and software for transferring waveforms and data

The MS420 comes with two 1X/10X oscilloscope probes, test leads, Windows XP/Vista compatible USB software and cable, capacitor measuring module, adjustment screwdriver, AC adaptor/charger, hard carrying case, user manual, and manufacturer’s one-year limited warranty.

MS420-data

This product is currently out of stock and unavailable.

SKU: N/A Categories: , ,

products found
Item # Description
EX/MS42020MHz Dual Channel Digital Oscilloscope
