DC Power Supplies – Extech
Extech offers a variety of DC Power supplies customized to suit the needs of your measuring requirements. Model 382202, 18V/3A Single Output DC Power Supply, Constant Voltage/Current digital DC power supply with dual LCD. Model 382213: Digital Triple Output DC Power Supply, Adjustable to 30V/3A with fixed 5V and 12V outputs. Model 382260: 80W Switching Mode DC Power Supply, 3-in-1 Lightweight DC Power Supply with 3 selectable ranges. Model 382270: Quad Output DC Power Supply, 4-in-1 DC Power Supply
382202: 18V/3A Single Output DC Power Supply, Constant Voltage/Current digital DC power supply with dual LCD
The 382202 is a DC power supply that provides an adjustable 0 to 30 Volts and 0 to 1 Amp output. Features dual backlit LCD display for current and voltage, short circuit and overload protection. Operates from 120VAC ±10%/60Hz power source. Banana plug outputs. Complete with power cord.
382213: Digital Triple Output DC Power Supply, Adjustable to 30V/3A with fixed 5V and 12V outputs
Ideal for a wide range of applications including bench testing, field service, hobby and telecommunication equipment, the solid-state, compact Extech 382213 digital DC power supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage. It offers three choices of power output: adjustable 0-30-Volt, 0-3-Amp, plus fixed 5- and 12-Volt. Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5- and 12-Volt outputs, and a current-limited front panel LED indicator. Complete with power cord.
382260: 80W Switching Mode DC Power Supply, 3-in-1 Lightweight DC Power Supply with 3 selectable ranges
Extech’s 382260 power supply has three selectable output ranges that perform like three power supplies in one: 0 to 16V/0 to 5A; 0 to 27V/0 to 3A; 0 to 36V/0 to 2.2A. This compact and lightweight unit provides easy portability and is ideal for tight workbenches with limited space. The 382260 features 4-Digit LED displays, front/rear output terminals, and remote sensing for accurate applied voltage at the load point. Complete with AC Power cord.

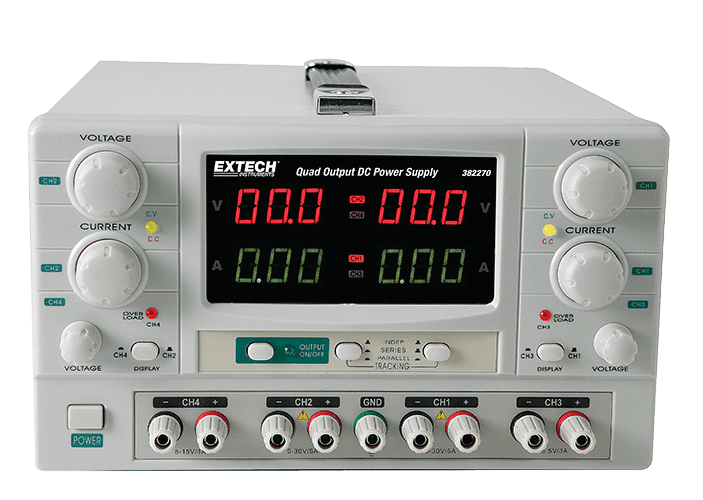

382270: Quad Output DC Power Supply, 4-in-1 DC Power Supply
382270 is a Quad Output DC Power Supply that has two 0 to 30V/0 to 5A outputs plus two fixed auxiliary outputs of 3 to 6.5V/3A and 15V/1A. The two 30V outputs can be combined in parallel for 10A or in series for 60V. Comes complete with 4 pairs of test leads (banana plug to an alligator clip) and an AC cord.
- One or Two Adjustable Outputs
- Auxiliary Fixed Outputs on Some Models
- Constant Voltage & Constant Current Modes
- 5 Models, up to 300W Out
- Digital Displays
|Item #||Description||Adjustable Outputs||Range||Display||Auxiliary Outputs|
|EX/382202||Digital 0-18V / 0-3A||One||0-18V/0-3A||dual LCD|
|EX/382270||Quad output power supply||Two||dual 0-30V/0-5A||four LED||3A@3-6.5V, 1A@8-15V|
|EX/382213||Digital 0-30V / 0-3A with fixed 5V/0.5A & 12V/1A outputs||One||0-30V/0-3A||dual LCD||fixed 5V/0.5A & 12V/1A|
|EX/382260||80W three range, single output power supply||One||0-16.4V/0-5.1A, 0-27.6V/0-3.1A, 0-36.8V/0-2.3A||Dual LED|
