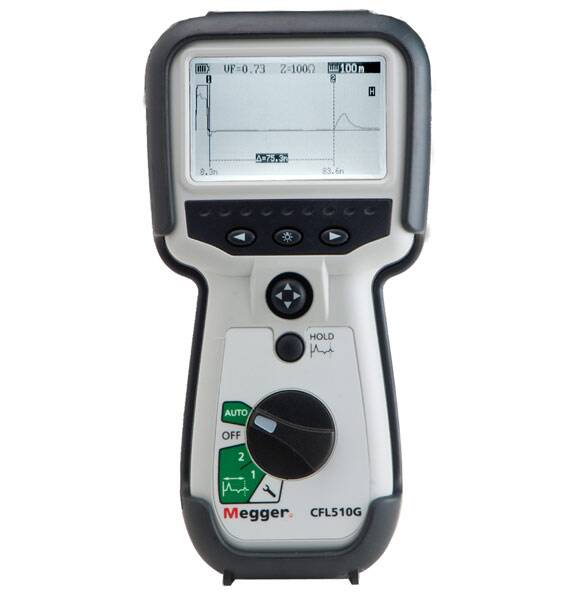

Dual Cursor Hand-Held TDR – Megger CFL510G


The Megger CFL510G is a handheld, compact Time Domain Reflectometer for locating faults on metallic cables. It has a minimum resolution of 0.1 m/0.3 ft and a 5 km/15,000 ft maximum range depending on the velocity factor selected and cable type.

Four output impedances (25, 50, 75, and 100 Ohm) are available and a velocity factor between 0.2 and 0.99 will meet any cable test requirements.
The CFL510G has a simple selection option which, together with a four-way control switch, offers an intuitive operation for the user.

  • Dual cursors for pinpointing faults
  • Auto set-up for instant use
  • 2 ns pulse width virtually eliminates dead zones
  • Unique trace HOLD feature for comparison between cables
  • IP54 rating
  • Designed for use on all metallic cable pairs
  • Three-year warranty

Includes Battery, Case & Test Leads

Dual Cursor Hand-Held TDR Dual Cursor Hand-Held TDR Specs

Catalog Page 173a                    CFL510G Datasheet

This product is currently out of stock and unavailable.

products found
Item # Description
ME/CFL510GHand held compact Time Domain Reflectometer
