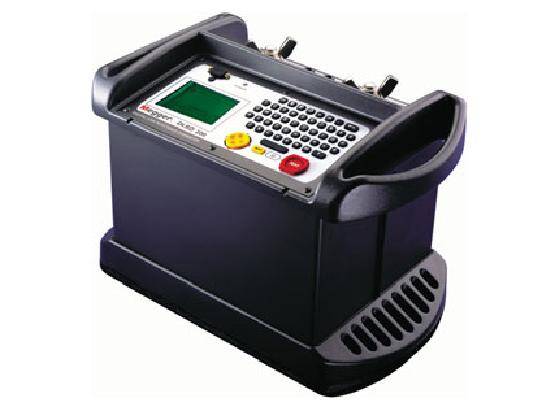

DLRO200 Digital Low Resistance Ohmmeters – Megger


Megger Ducter™ DLRO200 measures resistances between 0.1 µΩ and 1 Ω, at high currents.

This versatile instrument can provide test currents from 10 amps up to 200 amps subject to the load resistance and supply voltage. A large LCD displays all test parameters and measurement results.

  • Test currents from 10A to 200A DC
  • Filtered DC output eliminates magnetic transients
  • 0.1µohm best resolution
  • Full QWERTY keyboard
  • On board memory for up to 300 test results and notes
  • RS232 port to download stored results or for real time output to a printer

Supplied with 16 ft. (5m) test leads and download software.
A variety of C-clamp, Kelvin clips, fixed point and spring point leads are available in various lengths.

Catalog Page 162                    DLRO200 Datasheet

This product is currently out of stock and unavailable.

SKU: N/A Categories: ,

products found
Item # Measurement Range Test Modes Test Time Display Dimensions
ME/DLRO200-115E0.1µohm to 999.9mohmNormal, Continuous, Auto. Usecontinuous mode for long duration tests,Auto mode for rapid sequential testing.10 secondsLarge backlit LCD16.4 x 9.9 x 10.7 in 410 x 250 x 270 mm
