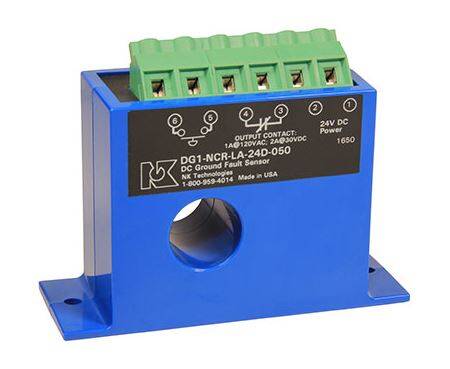

DC Ground Fault Relay – DG Series – NK Technologies

Description

DG Series Ground Fault Relay keeps machinery and their operators safe from accidental shocks. The one-piece, solid-core design allows for installation over wires feeding loads to about fifty amps. The output relay will change state at the factory setpoint between 5 and 50 mA of DC to earth.

ELECTROMECHANICAL RELAY OUTPUT

  1. Auto reset models have both normally open and normally closed contact
  2. Latching models have one normally open and one normally closed contact
  3. Compatible with most automation and control systems

EXTERNALLY POWERED

  1. A choice of fail-safe or standard auto-reset operation, or latching contact

SOLID-CORE CASE

  1. The sensing window provides ample space for multiple conductors

DESIGNED FOR UL, CUL AND CE APPROVAL

  1. Accepted worldwide

NK-Technologies-DG-Ground-Fault-Data-Sheet

Configure Product

Reset Form
View Result
Price:
Output Type
Power Supply
Contact Action
Trip Point

Factory Trip Points 005 to 050 mA
Note: 030 and 050 are the most common values
