Challenger Series DC Ammeters – Crompton

Description

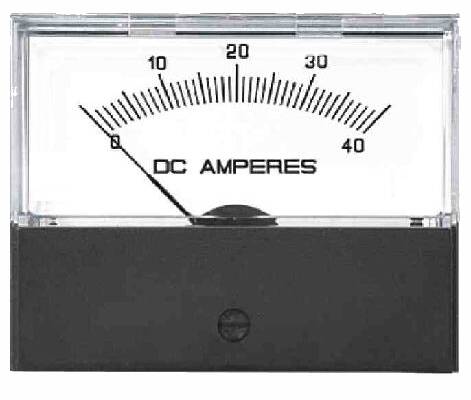

Crompton Challenger dca
click to view larger image

The Challenger range of analog panel meters offers accurate measurement and indication of most electrical and electronic parameters in industry-standard 1½”, 2½”, 3½” and 4½” case sizes. This innovative design features a detachable lower fascia plate, which allows the flexibility of either surface or window mounting. The fascia is simply unclipped to achieve the completely flush panel appearance of rear of panel window mounting.

These meters utilize a high torque pivot and jewel movement.

  • Accuracy: ±2% of Full Scale
  • Meets ANSI C39.1
  • Four Display Sizes: 1½”, 2½”, 3½”, and 4½”
  • Pivot & Jewel Movement
  • Replacements for Yokogawa Horizon and Stylist series

Catalog Page 59a                             Crompton-Challenger-new

SKU: N/A Categories: , ,
Show Advanced Filters

products found
Item # Model Case Size Range Scale Size (HxWxD)
361-01CA-NWNWChallenger - DC Ammeter - Zero Center1-1/230-0-30 Amp30-0-30 Amp1.8 x 2.3 x 1.8
364-01CA-EIEIChallenger - DC Microammeter - Zero Center4-1/2200-0-200 µA200-0-200 µA4.18 x 4.73 x 1.83
364-01CA-FAFAChallenger - DC Microammeter - Zero Center4-1/2500-0-500 µA500-0-500 µA4.18 x 4.73 x 1.83
364-01CA-FGFGChallenger - DC Milliammeter - Zero Center4-1/21-0-1 mA1-0-1 mA4.18 x 4.73 x 1.83
364-01CA-FSFSChallenger - DC Milliammeter - Zero Center4-1/22-0-2 mA2-0-2 mA4.18 x 4.73 x 1.83
364-01CA-GZGZChallenger - DC Milliammeter - Zero Center4-1/25-0-5 mA5-0-5 mA4.18 x 4.73 x 1.83
364-01CA-HFHFChallenger - DC Milliammeter - Zero Center4-1/210-0-10 mA10-0-10 mA4.18 x 4.73 x 1.83
364-01CA-HSHSChallenger - DC Milliammeter - Zero Center4-1/220-0-20 mA20-0-20 mA4.18 x 4.73 x 1.83
364-01CA-JRJRChallenger - DC Milliammeter - Zero Center4-1/250-0-50 mA50-0-50 mA4.18 x 4.73 x 1.83
364-01CA-LELEChallenger - DC Ammeter - Zero Center4-1/21-0-1 Amp1-0-1 Amp4.18 x 4.73 x 1.83
364-01CA-LLLLChallenger - DC Ammeter - Zero Center4-1/22-0-2 Amp2-0-2 Amp4.18 x 4.73 x 1.83
364-01CA-MTMTChallenger - DC Ammeter - Zero Center4-1/25-0-5 Amp5-0-5 Amp4.18 x 4.73 x 1.83
364-01CA-NLNLChallenger - DC Ammeter - Zero Center4-1/215-0-15 Amp15-0-15 Amp4.18 x 4.73 x 1.83
364-01CA-NPNPChallenger - DC Ammeter - Zero Center4-1/220-0-20 Amp20-0-20 Amp4.18 x 4.73 x 1.83
363-01CA-EIEIChallenger - DC Microammeter - Zero Center3-1/2200-0-200 µA200-0-200 µA3.32 x 3.89 x 1.83
363-01CA-FAFAChallenger - DC Microammeter - Zero Center3-1/2500-0-500 µA500-0-500 µA3.32 x 3.89 x 1.83
363-01CA-FGFGChallenger - DC Milliammeter - Zero Center3-1/21-0-1 mA1-0-1 mA3.32 x 3.89 x 1.83
363-01CA-FSFSChallenger - DC Milliammeter - Zero Center3-1/22-0-2 mA2-0-2 mA3.32 x 3.89 x 1.83
363-01CA-GZGZChallenger - DC Milliammeter - Zero Center3-1/25-0-5 mA5-0-5 mA3.32 x 3.89 x 1.83
363-01CA-HFHFChallenger - DC Milliammeter - Zero Center3-1/210-0-10 mA10-0-10 mA3.32 x 3.89 x 1.83
363-01CA-HSHSChallenger - DC Milliammeter - Zero Center3-1/220-0-20 mA20-0-20 mA3.32 x 3.89 x 1.83
363-01CA-JRJRChallenger - DC Milliammeter - Zero Center3-1/250-0-50 mA50-0-50 mA3.32 x 3.89 x 1.83
363-01CA-LELEChallenger - DC Ammeter - Zero Center3-1/21-0-1 Amp1-0-1 Amp3.32 x 3.89 x 1.83
363-01CA-LLLLChallenger - DC Ammeter - Zero Center3-1/22-0-2 Amp2-0-2 Amp3.32 x 3.89 x 1.83
363-01CA-MTMTChallenger - DC Ammeter - Zero Center3-1/25-0-5 Amp5-0-5 Amp3.32 x 3.89 x 1.83
363-01CA-NLNLChallenger - DC Ammeter - Zero Center3-1/215-0-15 Amp15-0-15 Amp3.32 x 3.89 x 1.83
363-01CA-NPNPChallenger - DC Ammeter - Zero Center3-1/220-0-20 Amp20-0-20 Amp3.32 x 3.89 x 1.83
362-01CA-EIEIChallenger - DC Microammeter - Zero Center2-1/2200-0-200 µA200-0-200 µA2.66 x 3.12 x 1.81
362-01CA-FAFAChallenger - DC Microammeter - Zero Center2-1/2500-0-500 µA500-0-500 µA2.66 x 3.12 x 1.81
362-01CA-FGFGChallenger - DC Milliammeter - Zero Center2-1/21-0-1 mA1-0-1 mA2.66 x 3.12 x 1.81
362-01CA-FSFSChallenger - DC Milliammeter - Zero Center2-1/22-0-2 mA2-0-2 mA2.66 x 3.12 x 1.81
362-01CA-GZGZChallenger - DC Milliammeter - Zero Center2-1/25-0-5 mA5-0-5 mA2.66 x 3.12 x 1.81
362-01CA-HFHFChallenger - DC Milliammeter - Zero Center2-1/210-0-10 mA10-0-10 mA2.66 x 3.12 x 1.81
362-01CA-HSHSChallenger - DC Milliammeter - Zero Center2-1/220-0-20 mA20-0-20 mA2.66 x 3.12 x 1.81
362-01CA-JRJRChallenger - DC Milliammeter - Zero Center2-1/250-0-50 mA50-0-50 mA2.66 x 3.12 x 1.81
362-01CA-LELEChallenger - DC Ammeter - Zero Center2-1/21-0-1 Amp1-0-1 Amp2.66 x 3.12 x 1.81
362-01CA-LLLLChallenger - DC Ammeter - Zero Center2-1/22-0-2 Amp2-0-2 Amp2.66 x 3.12 x 1.81
362-01CA-MTMTChallenger - DC Ammeter - Zero Center2-1/25-0-5 Amp5-0-5 Amp2.66 x 3.12 x 1.81
362-01CA-NLNLChallenger - DC Ammeter - Zero Center2-1/215-0-15 Amp15-0-15 Amp2.66 x 3.12 x 1.81
362-01CA-NPNPChallenger - DC Ammeter - Zero Center2-1/220-0-20 Amp20-0-20 Amp2.66 x 3.12 x 1.81
361-01CA-NPNPChallenger - DC Ammeter - Zero Center1-1/220-0-20 Amp20-0-20 Amp1.8 x 2.3 x 1.8
361-01CA-NLNLChallenger - DC Ammeter - Zero Center1-1/215-0-15 Amp15-0-15 Amp1.8 x 2.3 x 1.8
361-01CA-LLLLChallenger - DC Ammeter - Zero Center1-1/22-0-2 Amp2-0-2 Amp1.8 x 2.3 x 1.8
361-01CA-MTMTChallenger - DC Ammeter - Zero Center1-1/25-0-5 Amp5-0-5 Amp1.8 x 2.3 x 1.8
361-01CA-LELEChallenger - DC Ammeter - Zero Center1-1/21-0-1 Amp1-0-1 Amp1.8 x 2.3 x 1.8
361-01CA-JRJRChallenger - DC Milliammeter - Zero Center1-1/250-0-50 mA50-0-50 mA1.8 x 2.3 x 1.8
361-01CA-HSHSChallenger - DC Milliammeter - Zero Center1-1/220-0-20 mA20-0-20 mA1.8 x 2.3 x 1.8
361-01CA-HFHFChallenger - DC Milliammeter - Zero Center1-1/210-0-10 mA10-0-10 mA1.8 x 2.3 x 1.8
361-01CA-GZGZChallenger - DC Milliammeter - Zero Center1-1/25-0-5 mA5-0-5 mA1.8 x 2.3 x 1.8
361-01CA-FSFSChallenger - DC Milliammeter - Zero Center1-1/22-0-2 mA2-0-2 mA1.8 x 2.3 x 1.8
361-01CA-FGFGChallenger - DC Milliammeter - Zero Center1-1/21-0-1 mA1-0-1 mA1.8 x 2.3 x 1.8
361-01CA-FAFAChallenger - DC Microammeter - Zero Center1-1/2500-0-500 µA500-0-500 µA1.8 x 2.3 x 1.8
361-01CA-EIEIChallenger - DC Microammeter - Zero Center1-1/2200-0-200 µA200-0-200 µA1.8 x 2.3 x 1.8
364-01AA-ECSCChallenger - DC Ammeter - Shunt Rated4-1/250 mV400 Amp4.18 x 4.73 x 1.83
361-01AA-LALAChallenger - DC Ammeter - Self-Contained1-1/21 Amp1 Amp1.8 x 2.3 x 1.8
362-01AA-LALAChallenger - DC Ammeter - Self-Contained2-1/21 Amp1 Amp2.66 x 3.12 x 1.81
363-01AA-LALAChallenger - DC Ammeter - Self-Contained3-1/21 Amp1 Amp3.32 x 3.89 x 1.83
364-01AA-LALAChallenger - DC Ammeter - Self-Contained4-1/21 Amp1 Amp4.18 x 4.73 x 1.83
361-01AA-FAFAChallenger - DC Milliammeter1-1/21 mA1 mA1.8 x 2.3 x 1.8
362-01AA-FAFAChallenger - DC Milliammeter2-1/21 mA1 mA2.66 x 3.12 x 1.81
363-01AA-FAFAChallenger - DC Milliammeter3-1/21 mA1 mA3.32 x 3.89 x 1.83
364-01AA-FAFAChallenger - DC Milliammeter4-1/21 mA1 mA4.18 x 4.73 x 1.83
361-01AA-LCLCChallenger - DC Ammeter - Self-Contained1-1/21.5 Amp1.5 Amp1.8 x 2.3 x 1.8
362-01AA-LCLCChallenger - DC Ammeter - Self-Contained2-1/21.5 Amp1.5 Amp2.66 x 3.12 x 1.81
363-01AA-LCLCChallenger - DC Ammeter - Self-Contained3-1/21.5 Amp1.5 Amp3.32 x 3.89 x 1.83
364-01AA-LCLCChallenger - DC Ammeter - Self-Contained4-1/21.5 Amp1.5 Amp4.18 x 4.73 x 1.83
361-01AA-MTMTChallenger - DC Ammeter - Self-Contained1-1/210 Amp10 Amp1.8 x 2.3 x 1.8
362-01AA-MTMTChallenger - DC Ammeter - Self-Contained2-1/210 Amp10 Amp2.66 x 3.12 x 1.81
363-01AA-MTMTChallenger - DC Ammeter - Self-Contained3-1/210 Amp10 Amp3.32 x 3.89 x 1.83
364-01AA-MTMTChallenger - DC Ammeter - Self-Contained4-1/210 Amp10 Amp4.18 x 4.73 x 1.83
361-01AA-GZGZChallenger - DC Milliammeter1-1/210 mA10 mA1.8 x 2.3 x 1.8
362-01AA-GZGZChallenger - DC Milliammeter2-1/210 mA10 mA2.66 x 3.12 x 1.81
363-01AA-GZGZChallenger - DC Milliammeter3-1/210 mA10 mA3.32 x 3.89 x 1.83
364-01AA-GZGZChallenger - DC Milliammeter4-1/210 mA10 mA4.18 x 4.73 x 1.83
362-01AA-DRDRChallenger - DC Microammeter2-1/2100 uA100 µA2.66 x 3.12 x 1.81
363-01AA-DRDRChallenger - DC Microammeter3-1/2100 uA100 µA3.32 x 3.89 x 1.83
364-01AA-DRDRChallenger - DC Microammeter4-1/2100 uA100 µA4.18 x 4.73 x 1.83
361-01AA-ECPKChallenger - DC Ammeter - Shunt Rated1-1/250 mV100 Amp1.8 x 2.3 x 1.8
362-01AA-ECPKChallenger - DC Ammeter - Shunt Rated2-1/250 mV100 Amp2.66 x 3.12 x 1.81
363-01AA-ECPKChallenger - DC Ammeter - Shunt Rated3-1/250 mV100 Amp3.32 x 3.89 x 1.83
364-01AA-ECPKChallenger - DC Ammeter - Shunt Rated4-1/250 mV100 Amp4.18 x 4.73 x 1.83
361-01AA-JRJRChallenger - DC Milliammeter1-1/2100 mA100 mA1.8 x 2.3 x 1.8
362-01AA-JRJRChallenger - DC Milliammeter2-1/2100 mA100 mA2.66 x 3.12 x 1.81
363-01AA-JRJRChallenger - DC Milliammeter3-1/2100 mA100 mA3.32 x 3.89 x 1.83
364-01AA-JRJRChallenger - DC Milliammeter4-1/2100 mA100 mA4.18 x 4.73 x 1.83
361-01AA-DRDRChallenger - DC Microammeter1-1/2100 uA100 uA1.8 x 2.3 x 1.8
361-01AA-ECSSChallenger - DC Ammeter - Shunt Rated1-1/250 mV1000 Amp1.8 x 2.3 x 1.8
362-01AA-ECSSChallenger - DC Ammeter - Shunt Rated2-1/250 mV1000 Amp2.66 x 3.12 x 1.81
363-01AA-ECSSChallenger - DC Ammeter - Shunt Rated3-1/250 mV1000 Amp3.32 x 3.89 x 1.83
364-01AA-ECSSChallenger - DC Ammeter - Shunt Rated4-1/250 mV1000 Amp4.18 x 4.73 x 1.83
361-01CA-KJKJChallenger - DC Microammeter - Zero Center1-1/2200-0-200 mA200-0-200 mA1.8 x 2.3 x 1.8
362-01CA-KJKJChallenger - DC Microammeter - Zero Center2-1/2200-0-200 mA200-0-200 mA2.66 x 3.12 x 1.81
363-01CA-KJKJChallenger - DC Microammeter - Zero Center3-1/2200-0-200 mA200-0-200 mA3.32 x 3.89 x 1.83
364-01CA-KJKJChallenger - DC Microammeter - Zero Center4-1/2200-0-200 mA200-0-200 mA4.18 x 4.73 x 1.83
361-01CA-KAKAChallenger - DC Milliammeter - Zero Center1-1/2100-0-100 mA100-0-100 mA1.8 x 2.3 x 1.8
362-01CA-KAKAChallenger - DC Milliammeter - Zero Center2-1/2100-0-100 mA100-0-100 mA2.66 x 3.12 x 1.81
363-01CA-KAKAChallenger - DC Milliammeter - Zero Center3-1/2100-0-100 mA100-0-100 mA3.32 x 3.89 x 1.83
364-01CA-KAKAChallenger - DC Milliammeter - Zero Center4-1/2100-0-100 mA100-0-100 mA4.18 x 4.73 x 1.83
361-01CA-NGNGChallenger - DC Ammeter - Zero Center1-1/210-0-10 Amp10-0-10 Amp1.8 x 2.3 x 1.8
362-01CA-NGNGChallenger - DC Ammeter - Zero Center2-1/210-0-10 Amp10-0-10 Amp2.66 x 3.12 x 1.81
363-01CA-NGNGChallenger - DC Ammeter - Zero Center3-1/210-0-10 Amp10-0-10 Amp3.32 x 3.89 x 1.83
364-01CA-NGNGChallenger - DC Ammeter - Zero Center4-1/210-0-10 Amp10-0-10 Amp4.18 x 4.73 x 1.83
362-01AA-NDNDChallenger - DC Ammeter - Self-Contained2-1/215 Amp15 Amp2.66 x 3.12 x 1.81
363-01AA-NDNDChallenger - DC Ammeter - Self-Contained3-1/215 Amp15 Amp3.32 x 3.89 x 1.83
364-01AA-NDNDChallenger - DC Ammeter - Self-Contained4-1/215 Amp15 Amp4.18 x 4.73 x 1.83
361-01AA-ECPZChallenger - DC Ammeter - Shunt Rated1-1/250 mV150 Amp1.8 x 2.3 x 1.8
362-01AA-ECPZChallenger - DC Ammeter - Shunt Rated2-1/250 mV150 Amp2.66 x 3.12 x 1.81
363-01AA-ECPZChallenger - DC Ammeter - Shunt Rated3-1/250 mV150 Amp3.32 x 3.89 x 1.83
364-01AA-ECPZChallenger - DC Ammeter - Shunt Rated4-1/250 mV150 Amp4.18 x 4.73 x 1.83
361-01AA-LELEChallenger - DC Ammeter - Self-Contained1-1/22 Amp2 Amp1.8 x 2.3 x 1.8
362-01AA-LELEChallenger - DC Ammeter - Self-Contained2-1/22 Amp2 Amp2.66 x 3.12 x 1.81
363-01AA-LELEChallenger - DC Ammeter - Self-Contained3-1/22 Amp2 Amp3.32 x 3.89 x 1.83
364-01AA-LELEChallenger - DC Ammeter - Self-Contained4-1/22 Amp2 Amp4.18 x 4.73 x 1.83
362-01AA-NGNGChallenger - DC Ammeter - Self-Contained2-1/220 Amp20 Amp2.66 x 3.12 x 1.81
363-01AA-NGNGChallenger - DC Ammeter - Self-Contained3-1/220 Amp20 Amp3.32 x 3.89 x 1.83
364-01AA-NGNGChallenger - DC Ammeter - Self-Contained4-1/220 Amp20 Amp4.18 x 4.73 x 1.83
361-01AA-ECNGChallenger - DC Ammeter - Shunt Rated1-1/250 mV20 Amp1.8 x 2.3 x 1.8
362-01AA-ECNGChallenger - DC Ammeter - Shunt Rated2-1/250 mV20 Amp2.66 x 3.12 x 1.81
363-01AA-ECNGChallenger - DC Ammeter - Shunt Rated3-1/250 mV20 Amp3.32 x 3.89 x 1.83
364-01AA-ECNGChallenger - DC Ammeter - Shunt Rated4-1/250 mV20 Amp4.18 x 4.73 x 1.83
361-01AA-HFHFChallenger - DC Milliammeter1-1/220 mA20 mA1.8 x 2.3 x 1.8
362-01AA-HFHFChallenger - DC Milliammeter2-1/220 mA20 mA2.66 x 3.12 x 1.81
363-01AA-HFHFChallenger - DC Milliammeter3-1/220 mA20 mA3.32 x 3.89 x 1.83
364-01AA-HFHFChallenger - DC Milliammeter4-1/220 mA20 mA4.18 x 4.73 x 1.83
361-01AA-EAEAChallenger - DC Microammeter1-1/2200 µA200 µA1.8 x 2.3 x 1.8
362-01AA-EAEAChallenger - DC Microammeter2-1/2200 µA200 µA2.66 x 3.12 x 1.81
363-01AA-EAEAChallenger - DC Microammeter3-1/2200 µA200 µA3.32 x 3.89 x 1.83
364-01AA-EAEAChallenger - DC Microammeter4-1/2200 µA200 µA4.18 x 4.73 x 1.83
361-01AA-ECRLChallenger - DC Ammeter - Shunt Rated1-1/250 mV200 Amp1.8 x 2.3 x 1.8
362-01AA-ECRLChallenger - DC Ammeter - Shunt Rated2-1/250 mV200 Amp2.66 x 3.12 x 1.81
363-01AA-ECRLChallenger - DC Ammeter - Shunt Rated3-1/250 mV200 Amp3.32 x 3.89 x 1.83
364-01AA-ECRLChallenger - DC Ammeter - Shunt Rated4-1/250 mV200 Amp4.18 x 4.73 x 1.83
361-01CA-EAEAChallenger - DC Milliammeter - Zero Center1-1/2100-0-100 µA100-0-100 µA1.8 x 2.3 x 1.8
362-01CA-EAEAChallenger - DC Milliammeter - Zero Center2-1/2100-0-100 µA100-0-100 µA2.66 x 3.12 x 1.81
363-01CA-EAEAChallenger - DC Milliammeter - Zero Center3-1/2100-0-100 µA100-0-100 µA3.32 x 3.89 x 1.83
364-01CA-EAEAChallenger - DC Milliammeter - Zero Center4-1/2100-0-100 µA100-0-100 µA4.18 x 4.73 x 1.83
361-01AA-HJHJChallenger - DC Milliammeter1-1/225 mA25 mA1.8 x 2.3 x 1.8
362-01AA-HJHJChallenger - DC Milliammeter2-1/225 mA25 mA2.66 x 3.12 x 1.81
363-01AA-HJHJChallenger - DC Milliammeter3-1/225 mA25 mA3.32 x 3.89 x 1.83
364-01AA-HJHJChallenger - DC Milliammeter4-1/225 mA25 mA4.18 x 4.73 x 1.83
361-01AA-ECRSChallenger - DC Ammeter - Shunt Rated1-1/250 mV250 Amp1.8 x 2.3 x 1.8
362-01AA-ECRSChallenger - DC Ammeter - Shunt Rated2-1/250 mV250 Amp2.66 x 3.12 x 1.81
363-01AA-ECRSChallenger - DC Ammeter - Shunt Rated3-1/250 mV250 Amp3.32 x 3.89 x 1.83
364-01AA-ECRSChallenger - DC Ammeter - Shunt Rated4-1/250 mV250 Amp4.18 x 4.73 x 1.83
361-01AA-KDKDChallenger - DC Milliammeter1-1/2250 mA250 mA1.8 x 2.3 x 1.8
362-01AA-KDKDChallenger - DC Milliammeter2-1/2250 mA250 mA2.66 x 3.12 x 1.81
363-01AA-KDKDChallenger - DC Milliammeter3-1/2250 mA250 mA3.32 x 3.89 x 1.83
364-01AA-KDKDChallenger - DC Milliammeter4-1/2250 mA250 mA4.18 x 4.73 x 1.83
361-01AA-LJLJChallenger - DC Ammeter - Self-Contained1-1/23 Amp3 Amp1.8 x 2.3 x 1.8
362-01AA-LJLJChallenger - DC Ammeter - Self-Contained2-1/23 Amp3 Amp2.66 x 3.12 x 1.81
363-01AA-LJLJChallenger - DC Ammeter - Self-Contained3-1/23 Amp3 Amp3.32 x 3.89 x 1.83
364-01AA-LJLJChallenger - DC Ammeter - Self-Contained4-1/23 Amp3 Amp4.18 x 4.73 x 1.83
362-01AA-NLNLChallenger - DC Ammeter - Self-Contained2-1/230 Amp30 Amp2.66 x 3.12 x 1.81
363-01AA-NLNLChallenger - DC Ammeter - Self-Contained3-1/230 Amp30 Amp3.32 x 3.89 x 1.83
364-01AA-NLNLChallenger - DC Ammeter - Self-Contained4-1/230 Amp30 Amp4.18 x 4.73 x 1.83
361-01AA-ECNLChallenger - DC Ammeter - Shunt Rated1-1/250 mV30 Amp1.8 x 2.3 x 1.8
362-01AA-ECNLChallenger - DC Ammeter - Shunt Rated2-1/250 mV30 Amp2.66 x 3.12 x 1.81
363-01AA-ECNLChallenger - DC Ammeter - Shunt Rated3-1/250 mV30 Amp3.32 x 3.89 x 1.83
364-01AA-ECNLChallenger - DC Ammeter - Shunt Rated4-1/250 mV30 Amp4.18 x 4.73 x 1.83
361-01AA-HMHMChallenger - DC Milliammeter1-1/230 mA30 mA1.8 x 2.3 x 1.8
362-01AA-HMHMChallenger - DC Milliammeter2-1/230 mA30 mA2.66 x 3.12 x 1.81
363-01AA-HMHMChallenger - DC Milliammeter3-1/230 mA30 mA3.32 x 3.89 x 1.83
364-01AA-HMHMChallenger - DC Milliammeter4-1/230 mA30 mA4.18 x 4.73 x 1.83
361-01AA-ECRXChallenger - DC Ammeter - Shunt Rated1-1/250 mV300 Amp1.8 x 2.3 x 1.8
362-01AA-ECRXChallenger - DC Ammeter - Shunt Rated2-1/250 mV300 Amp2.66 x 3.12 x 1.81
363-01AA-ECRXChallenger - DC Ammeter - Shunt Rated3-1/250 mV300 Amp3.32 x 3.89 x 1.83
364-01AA-ECRXChallenger - DC Ammeter - Shunt Rated4-1/250 mV300 Amp4.18 x 4.73 x 1.83
362-01CA-NWNWChallenger - DC Ammeter - Zero Center2-1/230-0-30 Amp30-0-30 Amp2.66 x 3.12 x 1.81
363-01CA-NWNWChallenger - DC Ammeter - Zero Center3-1/230-0-30 Amp30-0-30 Amp3.32 x 3.89 x 1.83
364-01CA-NWNWChallenger - DC Ammeter - Zero Center4-1/230-0-30 Amp30-0-30 Amp4.18 x 4.73 x 1.83
361-01CA-JCJCChallenger - DC Milliammeter - Zero Center1-1/230-0-30 mA30-0-30 mA1.8 x 2.3 x 1.8
361-01AA-ECSCChallenger - DC Ammeter - Shunt Rated1-1/250 mV400 Amp1.8 x 2.3 x 1.8
362-01AA-ECSCChallenger - DC Ammeter - Shunt Rated2-1/250 mV400 Amp2.66 x 3.12 x 1.81
363-01AA-ECSCChallenger - DC Ammeter - Shunt Rated3-1/250 mV400 Amp3.32 x 3.89 x 1.83
361-01RA-HGHGChallenger - DC Milliammeter1-1/24-20 mA4-20 mA1.8 x 2.3 x 1.8
362-01RA-HGHGChallenger - DC Milliammeter2-1/24-20 mA4-20 mA2.66 x 3.12 x 1.81
363-01RA-HGHGChallenger - DC Milliammeter3-1/24-20 mA4-20 mA3.32 x 3.89 x 1.83
364-01RA-HGHGChallenger - DC Milliammeter4-1/24-20 mA4-20 mA4.18 x 4.73 x 1.83
361-01AA-LSLSChallenger - DC Ammeter - Self-Contained1-1/25 Amp5 Amp1.8 x 2.3 x 1.8
362-01AA-LSLSChallenger - DC Ammeter - Self-Contained2-1/25 Amp5 Amp2.66 x 3.12 x 1.81
363-01AA-LSLSChallenger - DC Ammeter - Self-Contained3-1/25 Amp5 Amp3.32 x 3.89 x 1.83
364-01AA-LSLSChallenger - DC Ammeter - Self-Contained4-1/25 Amp5 Amp4.18 x 4.73 x 1.83
361-01AA-ECNTChallenger - DC Ammeter - Shunt Rated1-1/250 mV50 Amp1.8 x 2.3 x 1.8
362-01AA-ECNTChallenger - DC Ammeter - Shunt Rated2-1/250 mV50 Amp2.66 x 3.12 x 1.81
363-01AA-ECNTChallenger - DC Ammeter - Shunt Rated3-1/250 mV50 Amp3.32 x 3.89 x 1.83
364-01AA-ECNTChallenger - DC Ammeter - Shunt Rated4-1/250 mV50 Amp4.18 x 4.73 x 1.83
361-01AA-HYHYChallenger - DC Milliammeter1-1/250 mA50 mA1.8 x 2.3 x 1.8
362-01AA-HYHYChallenger - DC Milliammeter2-1/250 mA50 mA2.66 x 3.12 x 1.81
363-01AA-HYHYChallenger - DC Milliammeter3-1/250 mA50 mA3.32 x 3.89 x 1.83
364-01AA-HYHYChallenger - DC Milliammeter4-1/250 mA50 mA4.18 x 4.73 x 1.83
361-01AA-ECSFChallenger - DC Ammeter - Shunt Rated1-1/250 mV500 Amp1.8 x 2.3 x 1.8
362-01AA-ECSFChallenger - DC Ammeter - Shunt Rated2-1/250 mV500 Amp2.66 x 3.12 x 1.81
363-01AA-ECSFChallenger - DC Ammeter - Shunt Rated3-1/250 mV500 Amp3.32 x 3.89 x 1.83
364-01AA-ECSFChallenger - DC Ammeter - Shunt Rated4-1/250 mV500 Amp4.18 x 4.73 x 1.83
361-01AA-KMKMChallenger - DC Milliammeter1-1/2500 mA500 mA1.8 x 2.3 x 1.8
362-01AA-KMKMChallenger - DC Milliammeter2-1/2500 mA500 mA2.66 x 3.12 x 1.81
363-01AA-KMKMChallenger - DC Milliammeter3-1/2500 mA500 mA3.32 x 3.89 x 1.83
364-01AA-KMKMChallenger - DC Milliammeter4-1/2500 mA500 mA4.18 x 4.73 x 1.83
361-01CA-LALAChallenger - DC Microammeter - Zero Center1-1/2500-0-500 ΜA500-0-500 ΜA1.8 x 2.3 x 1.8
362-01CA-LALAChallenger - DC Microammeter - Zero Center2-1/2500-0-500 ΜA500-0-500 ΜA2.66 x 3.12 x 1.81
363-01CA-LALAChallenger - DC Microammeter - Zero Center3-1/2500-0-500 ΜA500-0-500 ΜA3.32 x 3.89 x 1.83
364-01CA-LALAChallenger - DC Microammeter - Zero Center4-1/2500-0-500 ΜA500-0-500 ΜA4.18 x 4.73 x 1.83
361-01AA-ECSJChallenger - DC Ammeter - Shunt Rated1-1/250 mV600 Amp1.8 x 2.3 x 1.8
362-01AA-ECSJChallenger - DC Ammeter - Shunt Rated2-1/250 mV600 Amp2.66 x 3.12 x 1.81
363-01AA-ECSJChallenger - DC Ammeter - Shunt Rated3-1/250 mV600 Amp3.32 x 3.89 x 1.83
364-01AA-ECSJChallenger - DC Ammeter - Shunt Rated4-1/250 mV600 Amp4.18 x 4.73 x 1.83
361-01AA-KPKPChallenger - DC Milliammeter1-1/2600 mA600 mA1.8 x 2.3 x 1.8
362-01AA-KPKPChallenger - DC Milliammeter2-1/2600 mA600 mA2.66 x 3.12 x 1.81
363-01AA-KPKPChallenger - DC Milliammeter3-1/2600 mA600 mA3.32 x 3.89 x 1.83
364-01AA-KPKPChallenger - DC Milliammeter4-1/2600 mA600 mA4.18 x 4.73 x 1.83
361-01AA-ECPBChallenger - DC Ammeter - Shunt Rated1-1/250 mV75 Amp1.8 x 2.3 x 1.8
362-01AA-ECPBChallenger - DC Ammeter - Shunt Rated2-1/250 mV75 Amp2.66 x 3.12 x 1.81
363-01AA-ECPBChallenger - DC Ammeter - Shunt Rated3-1/250 mV75 Amp3.32 x 3.89 x 1.83
364-01AA-ECPBChallenger - DC Ammeter - Shunt Rated4-1/250 mV75 Amp4.18 x 4.73 x 1.83
361-01AA-ECSNChallenger - DC Ammeter - Shunt Rated1-1/250 mV800 Amp1.8 x 2.3 x 1.8
362-01AA-ECSNChallenger - DC Ammeter - Shunt Rated2-1/250 mV800 Amp2.66 x 3.12 x 1.81
363-01AA-ECSNChallenger - DC Ammeter - Shunt Rated3-1/250 mV800 Amp3.32 x 3.89 x 1.83
364-01AA-ECSNChallenger - DC Ammeter - Shunt Rated4-1/250 mV800 Amp4.18 x 4.73 x 1.83
Sorry, no products were found fitting that criteria. Please widen your search or reset item filters now

Related products
