BG Series Dual Edgewise Bargraphs – Weschler

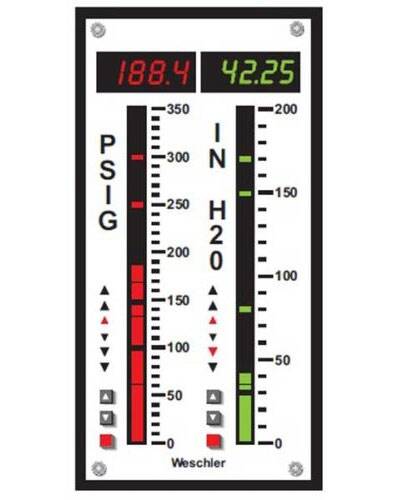

Weschler’s 101 segment LED Bargraphs combine the best of analog and digital solid state instrumentation. The BI125 and PC202 Dual Bargraphs have two independent 101 segment indicator bars that fit easily into standard 6″ edgewise and DIN size panel cutouts. Bars are available in red, green or amber.

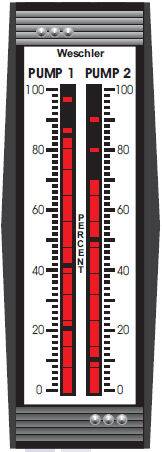

Each bar gives the operator a quick view of the measured signal and the control setpoints. The 101 segment bar provides 1% display resolution. Setpoint LEDs provide an added visual indication of control/alarm status. Signal direction is indicated by two trend indicators for each display. Dual 3-1/2 or 4 digit displays on the PC202 provide precise readouts of the signal variables. Setpoints and other parameters on the PC202 are easily entered from the front panel. The BI1251 uses an external button station to program the setpoints.

The Weschler Dual Bargraph instruments accept DC process inputs, either voltage or current. Other Bargraph models can be configured for a wide variety of input signals. Retrofit sizes are available for most panel and switchboard meters in use today. These instruments satisfy the high quality standards set forth by the utility, OEM and process control industries.


  • High resolution 101 segment LED bar
  • Form C relay outputs
  • Peak and Valley hold
  • Trend indication for signal direction
  • 3 or 4 digit display
  • Process Control DC inputs up to 5 amps and 250V

Programmable functions

  • Zero point location
  • Setpoint location
  • Hysteresis (setpoint, trend)
  • Span and zero
  • Digital display for engineering units
  • Enable/disable front buttons
  • I.D. selection for communication

Retrofit sizes for:

  • Dixson BB202, BG202;
  • Sigma/International Instruments 1251,
  • Lumigraph

Use the configuration tool to select model and options for the BI-1251 & PC-202.

Dual_Bargraphs_Data Sheet              Bargraph Input_Matrix

Configure Product

BG Series Dual Edgewise Bargraph Meters  – Weschler

Reset Form
View Result
BG Series Dual Bargraph Meter
Single Bargraph
Bar Zero Point
Digital Display
Setpoint Relays
Sepoint Hysteresis
Input Type
Full Scale Input Level
Values above 250V use external resistor (attached to meter).
Retransmit is available on one side only
* isolated outputs must have AC power
Communication is available on one side of the PC202 only
Requires setpoints. PC202 only
For more than one option select "Special" & note options separately.
LED Color
Product #:
