API Universal Transmitter – Temperature to DC – APD 4000 Series

Description

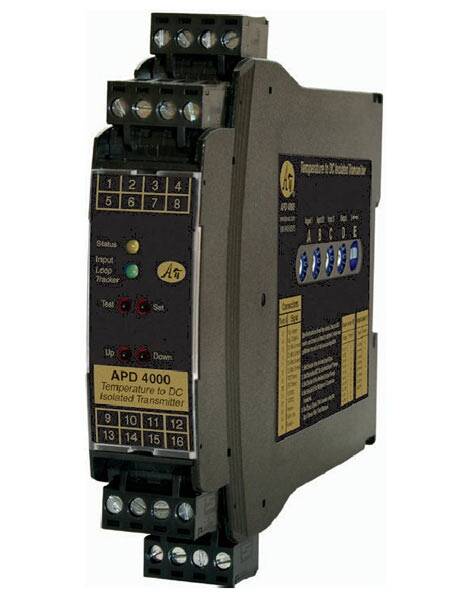

click to view larger image

The APD 4000 provides an optically isolated & linearized DC voltage or current output. Sensor type, temperature range and output range are field configurable.

• Suports Thermocouple, RTDs and Thermistors
• Zero & Span for Output
• 1200V Isolation
• Input Loop Tracker LED
• 20VDC Supply for Sink/Source Output
• Made in USA, Lifetime Warranty

Catalog Page 81b                    API-APD 4000-Datasheet

Options – add suffix to model number:
U                 Conformal coating for moisture resistance
R                 Reverse acting output (factory set only)
NC5            5 point NIST traceable calibration
NC11          11 point NIST traceable calibration
Accessories – order as a separate line item:
API BP4      Spare removable 4 terminal plug
API TK36    DIN rail, 35 mm W x 39″ L, aluminum
