API Plug-In Alarms

Description

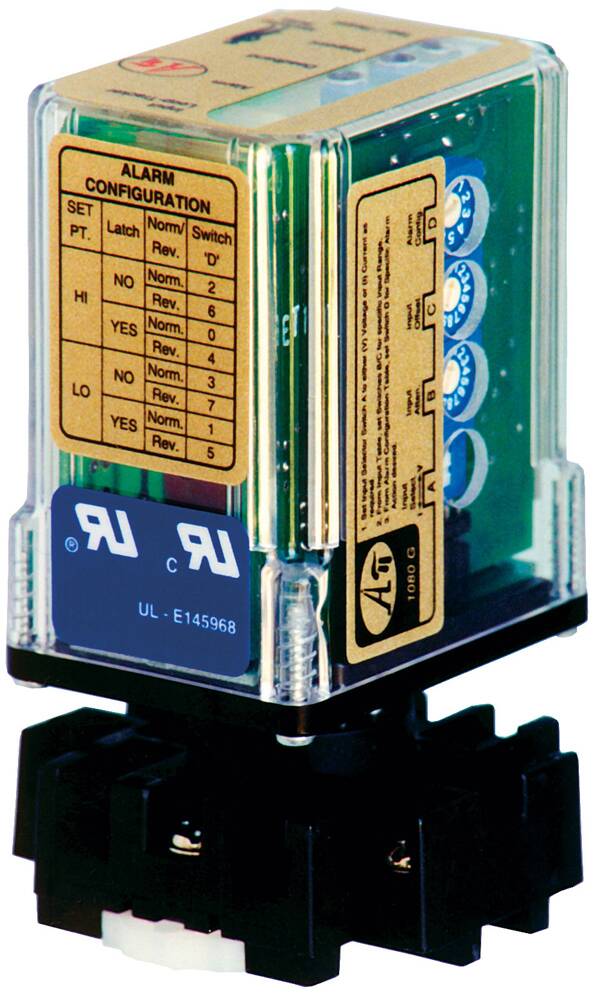

The API 1080 G and API 1090 G accept a DC voltage or current input and provide visual alarm indication and alarm relay contact outputs. Voltage and current input ranges can be field-configured via external rotary and slide switches. Offset ranges such as 1-5 VDC and 4-20 mADC are also included. Heavy-duty relay contacts allow the module to directly control high capacity loads. Top-accessible potentiometers are used to adjust the alarm setpoint from 0 to 100% and the deadband from 1 to 100%.

The API 1080 G provides a single setpoint adjustment of the two DPST relay contacts. The alarm output can be field configured for HI or LO operation, latching or non-latching, and normal or reverse acting. The deadband and alarm setpoint are adjustable.

The API 1090 G provides two setpoint adjustments of the two SPDT relay contacts. The alarm outputs can be configured in the field for HI/HI, LO/LO, HI/LO or LO/HI operation, latching or non-latching, and normal or reverse acting. Deadband and alarm setpoints are independently adjustable for each alarm.

  • Easy-to-install Plug-in Modules
  • Wide Choice of Inputs: Volts AC/DC, Amps AC/DC, Process V/mA, Frequency, Thermocouple, RTD
  • One DPDT Relay or Two SPDT Relays
  • Field Adjustable Alarm Setpoint(s)
  • Lifetime Warranty

Catalog-Page-88b                      API-brochure

Clear
SKU: N/A Categories: ,
Show Advanced Filters

products found
Item # Selectable Range Input Range Alarm Deadband Power
API 1000 G A230Factory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot230 VAC
API 1000 G A230 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot230 VAC
API 1000 G DFactory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot9-30 VDC
API 1000 G D 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot9-30 VDC
API 1000 G PFactory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1000 G P 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1005 G A230Factory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply1 DPDT relay HI alarm std.1-100% of span, 12 turn pot230 VAC
API 1005 G DFactory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply1 DPDT relay HI alarm std.1-100% of span, 12 turn pot9-30 VDC
API 1005 G PFactory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply1 DPDT relay HI alarm std.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1020 G A230Factory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable230 VAC
API 1020 G A230 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable230 VAC
API 1020 G DFactory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable9-30 VDC
API 1020 G D 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable9-30 VDC
API 1020 G PFactory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 1020 G P 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 2025 G A230Factory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable230 VAC
API 2025 G DFactory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable9-30 VDC
API 2025 G PFactory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 1080 G A230Field24 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply1 DPDT relay configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot230 VAC
API 1080 G DField24 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply1 DPDT relay configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot9-30 VDC
API 1080 G PField24 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply1 DPDT relay configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1090 G A230Field26 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot230 VAC
API 1090 G DField26 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot9-30 VDC
API 1090 G PField26 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1200 G A230FactoryThermocouple type ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot230 VAC
API 1200 G DFactoryThermocouple type ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot9-30 VDC
API 1200 G PFactoryThermocouple type ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1220 G A230FactoryThermocouple type ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable230 VAC
API 1220 G DFactoryThermocouple type ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable9-30 VDC
API 1220 G PFactoryThermocouple type ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 1400 G A230FactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot230 VAC
API 1400 G DFactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot9-30 VDC
API 1400 G PFactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1420 G A230FactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable230 VAC
API 1420 G DFactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable9-30 VDC
API 1420 G PFactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 1600 G A230Factory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot230 VAC
API 1600 G A230 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot230 VAC
API 1600 G DFactory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot9-30 VDC
API 1600 G D 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot9-30 VDC
API 1600 G PFactory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1600 G P 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1620 G A230Factory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable230 VAC
API 1620 G A230 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable230 VAC
API 1620 G DFactory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable9-30 VDC
API 1620 G D 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable9-30 VDC
API 1620 G PFactory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 1620 G P 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 1700 G A230FactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz1 DPDT relay HI alarm std.1-100% of span, 12 turn pot230 VAC
API 1700 G DFactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz1 DPDT relay HI alarm std.1-100% of span, 12 turn pot9-30 VDC
API 1700 G PFactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz1 DPDT relay HI alarm std.1-100% of span, 12 turn pot80-265 VAC, 48-300 VDC
API 1720 G A230FactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable230 VAC
API 1720 G DFactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable9-30 VDC
API 1720 G PFactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz2 SPDT relays configurable for HI/LO, latching, normal/reverseFixed 1% of span,standard see options for adjustable80-265 VAC, 48-300 VDC
API 1080 GField24 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply1 DPDT relay configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot115 VAC
API 1090 GField26 selectable ranges, 0-50 mVDC to ±10 VDC, 0-1 mADC to 4-20 mADC, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO, latching, normal/reverse1-100% of span, 12 turn pot115 VAC
API 1000 GFactory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot115 VAC
API 1000 G 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot115 VAC
API 1020 GFactory0-100mVDC to 0-300VDC or 0-1mADC to 0-900 mADC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable115 VAC
API 1020 G 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable115 VAC
API 1600 GFactory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot115 VAC
API 1600 G 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt1 DPDT relay HI alarm std. See options list.1-100% of span, 12 turn pot115 VAC
API 1620 GFactory0-50mVAC to 0-300VAC or 0-1mAAC to 0-900 mAAC (specify on order)2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable115 VAC
API 1620 G 5AFactory>0-900mAAC to 0-5AAC (specify on order) includes API 011 socket w/0.1ohm 25W shunt2 SPDT relays HI/LO alarms Internal jumper configurable for LO/HI..Fixed 1% of span,standard see options for adjustable115 VAC
API 1005 GFactory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply1 DPDT relay HI alarm std.1-100% of span, 12 turn pot115 VAC
API 1025 GFactory4-20mA, 1.25VDC max burden, 18V at 25mA loop supply2 SPDT relays configurable for HI/LO,LO/HI, LO/LO,HIHIFixed 1% of span,standard see options for adjustable115 VAC
API 1700 GFactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz1 DPDT relay HI alarm std.1-100% of span, 12 turn pot115 VAC
API 1720 GFactoryFrequency, (specify range on order) Min: 0-10Hz, Max: 0-20kHz2 SPDT relays configurable for HI/LO,LO/HI, LO/LO,HIHIFixed 1% of span,standard see options for adjustable115 VAC
API 1200 GFactoryThermocouple type ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot115 VAC
API 1220 GFactoryThermocouple type ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO,LO/HI, LO/LO,HIHIFixed 1% of span,standard see options for adjustable115 VAC
API 1400 GFactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)1 DPDT relay HI alarm std.1-100% of span, 12 turn pot115 VAC
API 1420 GFactoryRTD/thermistor Input ºC or ºF temperature range (specify range on order)2 SPDT relays configurable for HI/LO,LO/HI, LO/LO,HIHIFixed 1% of span,standard see options for adjustable115 VAC
