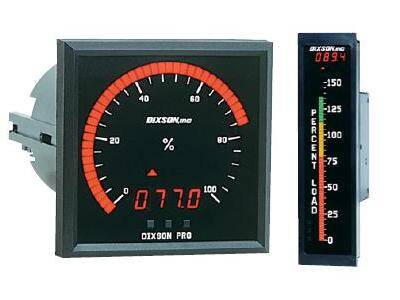

Ametek Dixson Bargraph Meters / Controllers


The Ametek Dixson model BK051P replaces Hays-Republic Model 216 and other similar Bailey instruments. The BW051P This enclosure replaces all 4½” standard switchboard circular meters and is a direct replacement for the GE/ Yokogawa AB/DB40 meters. The BB101P and BB202P enclosures are form-factor compatible with standard, 6-inch edgewise switchboard instruments and is a direct replacement for the GE/Yokogawa 180, International Sigma Model 1151/1251, and the Crompton 6-inch meters. This simplifies retrofit into existing systems without panel modifications.

For control applications, the optional set point/relay module provides on/off and differential gap control and annunciation using three set points. The optional digital display reads to 10 percent over- and underrange.

The optional temperature measurement module makes the instrument a direct-reading indicator for E, J, K, and T thermocouples, or 100-ohm RTD, and an optional retransmission module simplifies distribution of the temperature parameter throughout the system.

  • Fit Standard Switchboard Cutouts
  • Red, Green or Amber LED Bar
  • Precise 4 Digit Readout
  • Underrange/Overrange Indication
  • On/Off Control via Setpoint Relays
  • Isolated Retransmit Option
  • Transducer Excitation Supply
  • Minimum 88,000 hour MTBF
  • Two Year Warranty
