AM-30 1/16 DIN Short-Depth Bargraphs – Texmate
Description

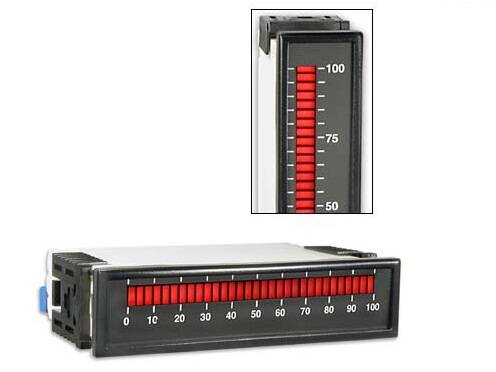

5 VDC powered LED Bargraph with Dual Setpoints
The AM-30 are 31-segment bargraphs housed in a compact DIN case (96x24mm) with a short depth (56.5mm/2.23″). They can be ordered in either a horizontal or vertical format. The setpoints for the two form C relay outputs are easily adjustable from the front of the meter.
Input range is user selectable via internal jumper (shipped at 1V setting). Standard LED color is red. Blue or green also available. Standard scale is 0-100. A custom scale can be substituted on request.
products found
| Item # | Description | LED Color | Orientation |
|---|---|---|---|
| AM-30R2-HORZ/RED | 31 segment LED bargraph with 2 relay outputs | Red | Horizontal |
| AM-30R2-VERT/RED | 31 segment LED bargraph with 2 relay outputs | Red | Vertical |
