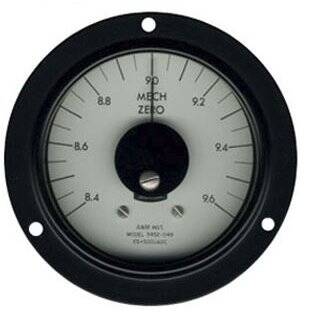

A&M Ruggedized Panel Meters

Description

A&M Ruggedized Meters conform to the requirements of MIL-PRF-10304. Ruggedized Meters are ideal for use in field communication or test equipment where severe environmental conditions are encountered. In industrial applications where moisture, extreme temperature or vibration may be a problem, the Ruggedized Meter can perform with no additional cost.

  • Steel Case, Glass Window
  • Watertight
  • Magnetic Shielding (90° models)
  • Mounting per Mil-M-10304E

Specifications

1½”, 2½”, 3½”, 4½” RUGGEDIZED METERS—90°

  • Movement: DC Core Magnet- Self Shielding Pivot and Jewel Suspension with Spring-Backed Jewels.
  • Accuracy: 2% DC and AC Iron Vane Per MIL-PRF-10304F; 3% AC Rectified.
  • Case/Finish: Steel cadmium/zinc plate, chromate dip.
  • Front/Finish: Die-cast / Semi-Gloss Black
  • Hardware: Mounting Hardware Provided.
  • Mounting: Conforms to Military Specifications MIL-PRF-10304F
  • Pointer: See Individual Meters.
  • Scale Length: See Individual Meters.
  • Sealing: Watertight Standard-Neoprene Sealing “O” Ring
  • Shielding: Magnetically Shielded Construction for use on Magnetic or Non-Magnetic Panel.
  • Terminals: See Individual Meters.
  • Window: Tempered Glass with Zero Corrector.

2½”, 3½”, 4½” RUGGEDIZED LONG SCALE PANEL METERS—250°

  • Movement: DC-Self Shielding Pivot and Jewel Suspension with Spring-Backed Jewels.
  • Accuracy: 1% DC, 2% AC Rectified Per MIL-PRF-10304
  • Case/Finish: Steel cadmium/zinc plate, chromate dip.
  • Front/Finish: Diecast/Semi-Gloss Black
  • Hardware: Mounting Hardware Provided
  • Mounting: Conforms to Military Specifications MIL-PRF-10304F
  • Pointer: Knife Edge
  • Scale Length: See Individual Meters.
  • Sealing: Watertight Standard-Neoprene Sealing “O” Ring.
  • Terminals: ¼-28 Brass Stud (Nuts, Washers, Solder Lugs Provided.)
  • Window: Tempered Glass with Zero Corrector.



To order: specify model, input & scale

Catalog Page 074

This product is currently out of stock and unavailable.

Show Advanced Filters

products found
Item # Style Size (in) Type Accuracy
36590° Round3.5DC Core Magnet2% DC & Iron Vane, 3% Rectifier Type
36690° Round3.5AC Iron Vane2% DC & Iron Vane, 3% Rectifier Type
13390° Square1.5AC Rectifier Type2% DC & Iron Vane, 3% Rectifier Type
26690° Round2.5AC Iron Vane2% DC & Iron Vane, 3% Rectifier Type
13590° Square1.5DC Core Magnet2% DC & Iron Vane, 3% Rectifier Type
23590° Square2.5DC Core Magnet2% DC & Iron Vane, 3% Rectifier Type
23390° Square2.5AC Rectifier Type2% DC & Iron Vane, 3% Rectifier Type
23690° Square2.5AC Iron Vane2% DC & Iron Vane, 3% Rectifier Type
2432250° Round2.5AC Rectifier Type1% DC, 2% Rectifier Type
3432250° Round3.5AC Rectifier Type1% DC, 2% Rectifier Type
2452250° Round2.5RF Core Magnet1% DC, 2% Rectifier Type
3452250° Round3.5DC Self-shielding1% DC, 2% Rectifier Type
26390° Round2.5AC Rectifier Type2% DC & Iron Vane, 3% Rectifier Type
26590° Round2.5DC Core Magnet2% DC & Iron Vane, 3% Rectifier Type
36390° Round3.5AC Rectifier Type2% DC & Iron Vane, 3% Rectifier Type
