AEMC Power Quality Analyzer PowerPad IV Model 8345

Description

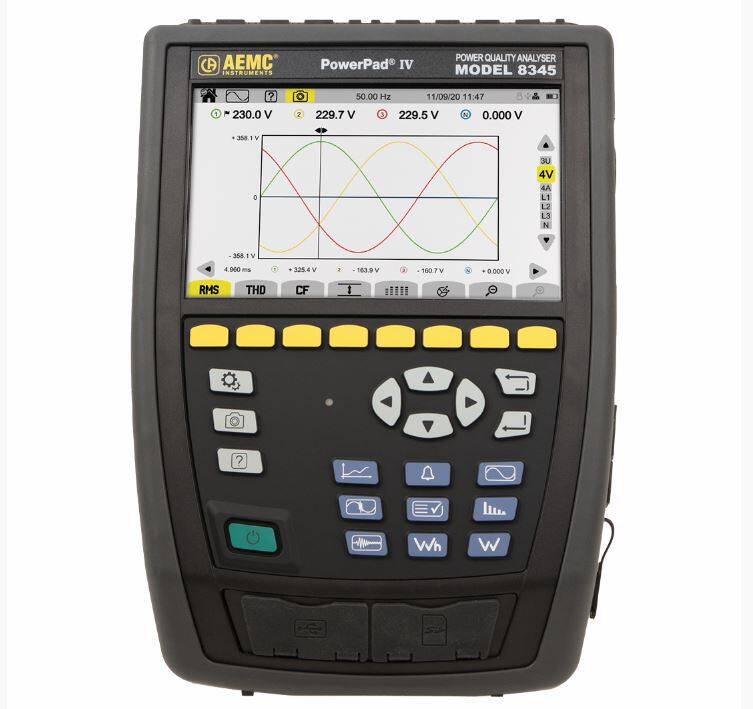

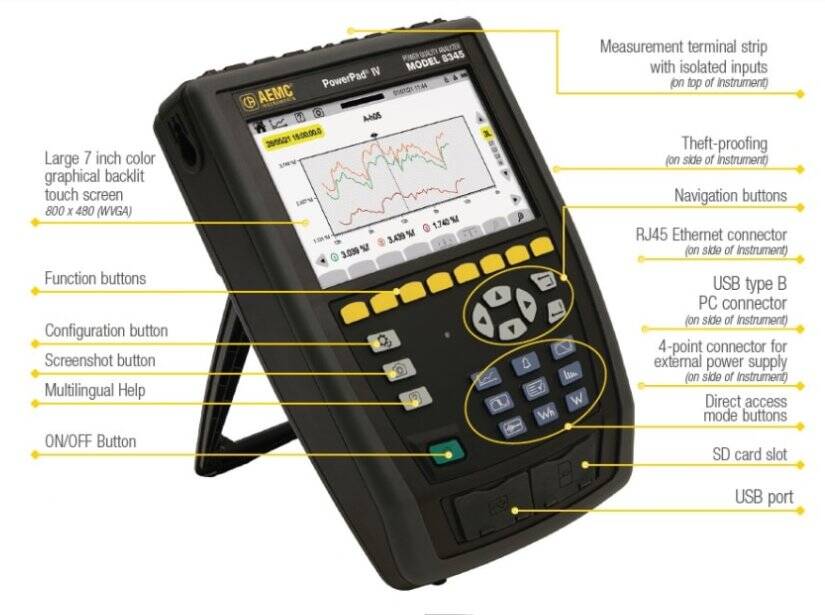

The PowerPad® IV Model 8345 is a portable, three-phase Power Quality Analyzer that is easy-to-use, and offers the highest measurement accuracy. It provides extensive features, calculated values and processing functions, including five 1000V AC/DC channels and an internal GPS clock. These enable technicians and engineers to measure and diagnose all existing one, two or three phase networks. The bright, 7″ color touch screen display speeds on-screen set-up and waveform viewing. The Model 8345 is in full compliance with IEC 61000-4-30 Class A and is safety rated to 1000 V CAT IV

FEATURES:

  • IEC 61000-4-30 Class A standard

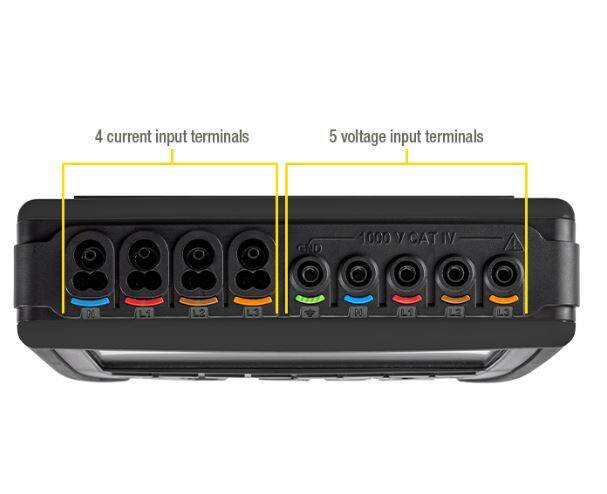

  • 5 V to 1000 VAC and VDC Voltage
  • Sampling rates – 400 kSps voltage, 200 kSps current, and 2 MSps surge
  • Shockwaves (fast transients) up to 12 kV every 500 ns
  • Works on all existing electrical networks (single phase, three phase, wye, delta, etc.)
  • Harmonics – DC to 63rd order; Interharmonics – 0 to 62nd order
  • Power W, VA, VAR (N, Q1 and D) measurements
  • USB, Ethernet, Webserver and Wi-Fi communication for easy accessibility

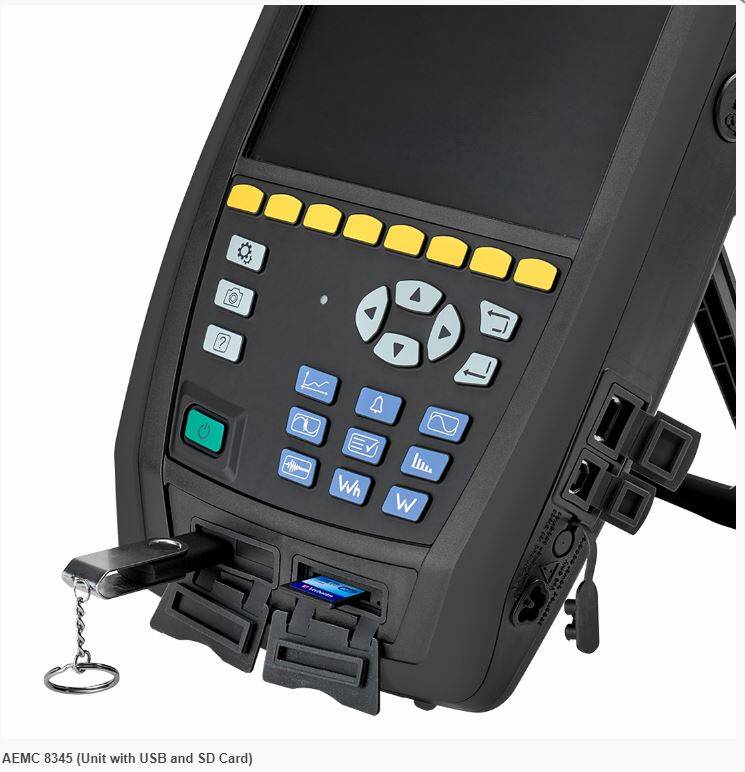

  • Data stored on an included external SD Card for transport flexibility
  • Capture of hundreds of 2.5 µs transients
  • IP 54 protection
  • 7-inch color TFT Display with touch screen
  • Includes FREE DataView® software for configuring data retrieval, real-time display, analysis, and report generation
  • 3 Year Warranty (upon registration within 30 days)

APPLICATIONS:

  • Electrical Maintenance
  • Power factor studies
  • Load balancing & load start-up measurements
  • Overheating of the neutral conductor
  • Measurements on photovoltaic installations
  • Capacitor bank sizing
  • Transformer analysis (derating)
  • Failure of switchgear or its components
  • Tripping of circuit braker and differentials
  • Flicker monitoring & energy efficiency
  • Checking power consumption
  • Substation metering
  • Voltage quality analysis

SPECIFICATIONS

AEMC_8345-series_datasheet


products found
Item # Model Description Price
AEMC-2140.36MN193-BKAC Current Probe 100AAC$295.00
AEMC-2140.48MA193-10-BKMiniFlex® Sensor 10” 3000AAC$239.00
AEMC-2140.50MA193-14-BKMiniFlex® Sensor 14” 3000AAC$269.00
AEMC-2140.33SR193-BKAC Current Probe 1200AAC$350.00
AEMC-2140.34193-24-BKAmpFlex® 24” 12000AAC$300.00
AEMC-2140.35193-36-BKAmpFlex® 36” 12000AAC$350.00
AEMC-2140.32MN93-BKAC Current Probe 200AAC$214.00
AEMC-2140.28MR193-BKAC/DC Current Probe 1000AAC / 1400ADC$450.00
AEMC-2136.358345PowerPad IV (no probes)$8,495.00

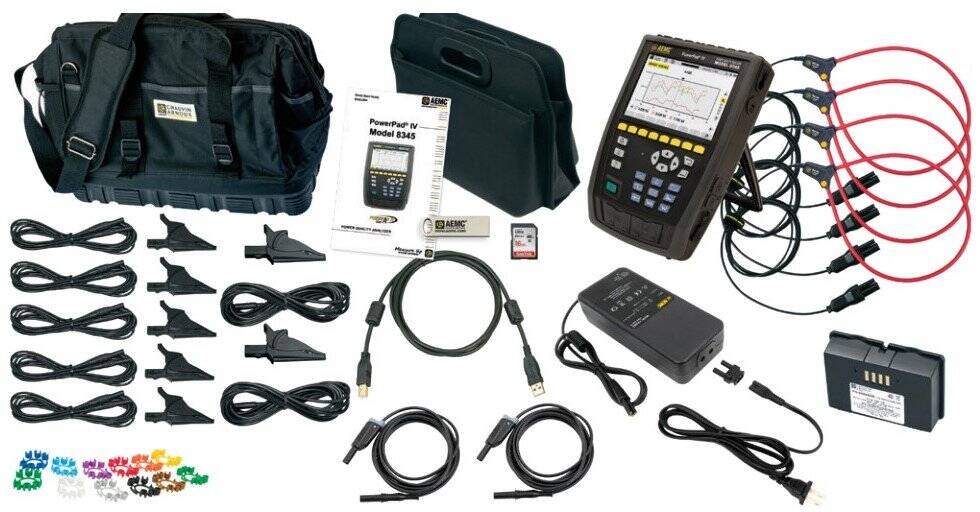

AEMC-2136.368345PowerPad IV w/4 MA194-24-BK Sensors$9,495.00
