AEMC Phase Rotation Meter

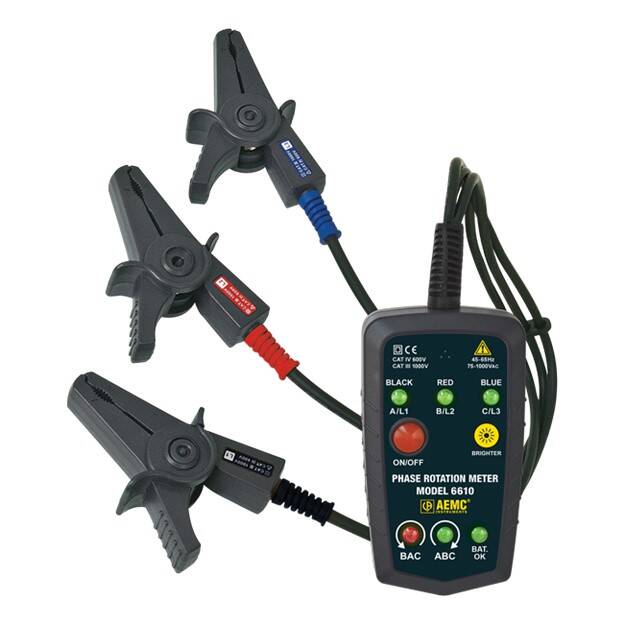

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection and maintenance facility. The Model 6610 is a non-contact (no metal contact points) phase meter designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. The presence of live wires and phase sequence are provided by LED indication and buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator phase rotation direction.

    • Non-contact detector clips – No metal contact points to promote greater safety
    • Dual functions: Open phase and phase sequence detection
    • Designed for checking a wider range of 3-phase power source from 75V to 1000VAC
    • Detects frequency range from 45 to 65Hz
  • Phase rotation LED display lights with buzzer indicator (ABC or BAC)
  • Bright LED indication Live or Open Phase (A, B, C)
  • Brightness adjustments for better visibility in dimly lit areas or direct sunlight
  • Includes three attached color-coded test leads with non-metallic alligator sensor clips for easy connection to the device under test
  • Magnetic mounting feature on back cover for easy attachment to metal cabinets
  • Low battery indicator

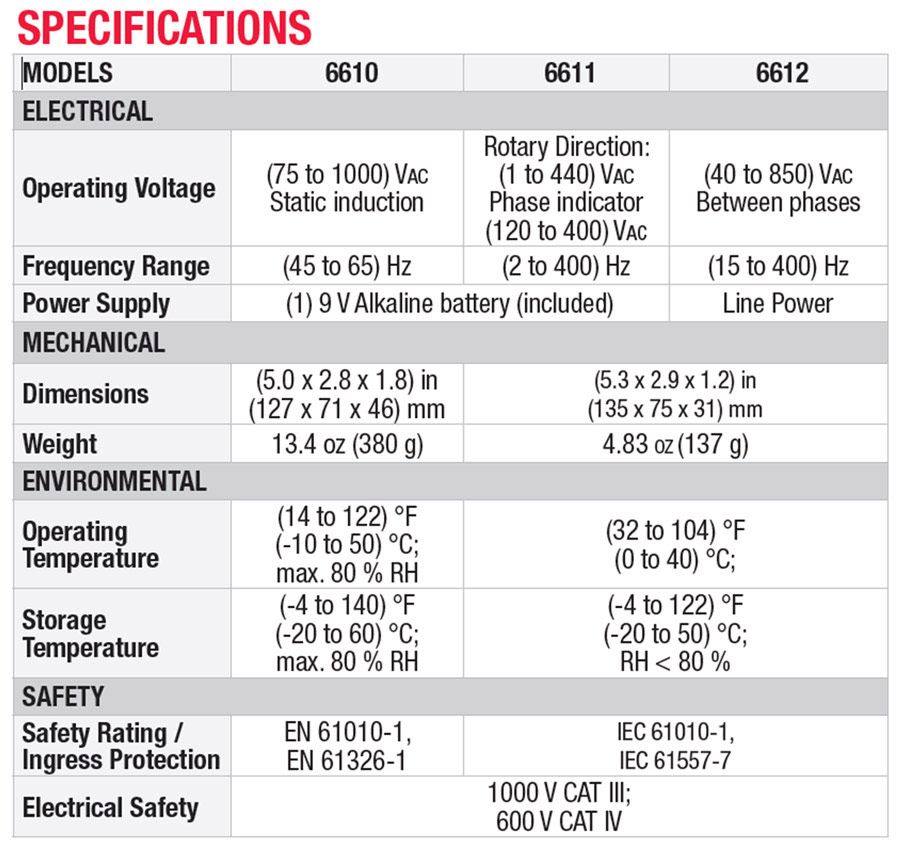

6610 Data Sheet

SKU: N/A Categories: ,

products found
Item # Item Name Price
AE/2121.12AEMC model 6610 Phase Rotation Meter$199.00
