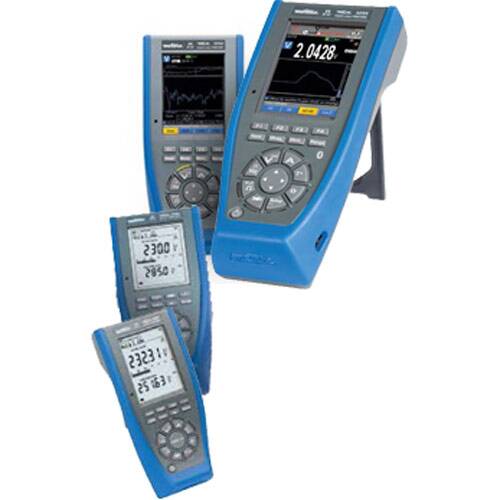

AEMC Digital Multimeters with Graphical Display MTX Series

Description

The AEMC MTX series portable hand-held True RMS multimeters with digital display (Models MTX 3290 & MTX 3291) and graphical color display (Models MTX 3292 & MTX 3293) allow direct measurement of the main electrical quantities. Their innovative design makes them compact, rugged, comfortable to grip and leakproof to IP67 standard. Advanced measurement functions include Duty Cycle, Pulse Counting, Math function and monitoring of Min/Max/Avg/Peaks enables you to observe many various aspects of electrical quantities

They display measurement results either as numeric values or as graphs showing the trend over time. The graphical models include MATH functions and Recording capabilities. USB and Bluetooth communication allow meter configuration, real-time data streaming and downloading recordings using SX-DMM software. Instrument’s firmware can also be upgraded through USB.

Features

  • MTX 3290 6000 counts, MTX 3291 60,000 counts,
  • MTX 3292 & MTX 3293 50,000/100,000 counts
  • VAC/DC/AC+DC, VLowZ, IAC/DC/AC+DC, Ohm, Cap, Diode, Hz, Temp
  • True RMS AC Voltage and Current measurements
  • 1000V AC/DC/AC+DC
  • 10A AC/DC/AC+DC
  •  VlowZ – low impedance voltage measurement
  • Resistance to 60MΩ (MTX 3292, MTX 3293 to 100 MΩ)
  • Capacitance to 60mF (MTX 3292, MTX 3293 to 10mF)
  • Diode test capable
  • Clamp function for direct current readings
  • Frequency measurement to 600kHz (MTX 3292, MTX 3293 to 5MHz)
  • Temperature with optional PT100/PT1000 sensors
  • Audible continuity
  • Min/Max/Avg/Peak with time stamps
  • Hold / Auto-Hold functions
  • IP67 rated
  • 1000V CAT III / 600V CAT IV (MTX 3290 600V CAT III / 300V CAT IV)
  • 3 Year Warranty

Additional Features (Models MTX 3292 & MTX 3293)

  • Duty Cycle / Pulse Width measurements
  • Relative measurements (REL)
  • Math function
  • Recording memory measurements (MTX 3292 1000, MTX 3293 6500)
  • Interactive Zoom function
  • USB Optical Connector with SX-DMM Software
  • Bluetooth Communication (Optional)

MTX-3200-Series-Datasheet


products found
Item # Description Price
2154.01AEMC DMM MTX 3290 (ASYC IV, TRMS, 6,000-cts, Digital LCD)$525.00
2154.05AEMC DMM MTX 3292-BT (ASYC IV, TRMS, 100,000-cts, Bluetooth, USB, Color Graphical Display)$925.00
2154.06AEMC DMM MTX 3293-BT (ASYC IV, TRMS, 100,000-cts, Bluetooth, USB, Color Graphical Display)$995.00
2154.04AEMC DMM MTX 3293 (ASYCIV, TRMS, 100,000-cts, USB Color Graphical Display)$895.00
2154.03AEMC DMM MTX 3292 (ASYC IV, TRMS, 100,000-cts, USB, Color Graphical Display)$875.00
2154.02AEMC DMM MTX 3291 (ASYC IV, TRMS, 60,000-cts, USB, Backlit, Digital LCD)$630.00
