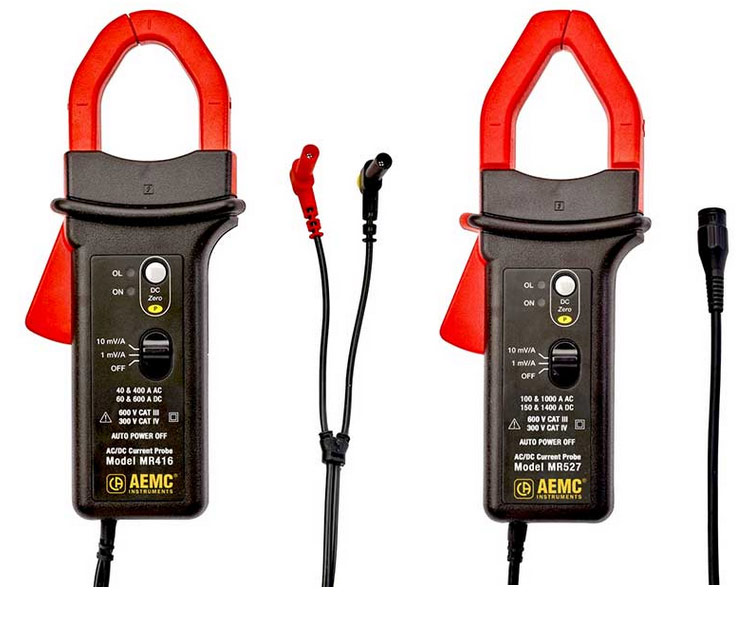

AEMC AC/DC Clamp-On Current Probes – MR Series

Description

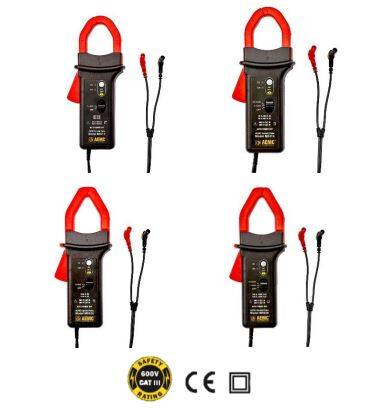

AEMC® MR Series AC/DC Current Measurement Probes . The MR Series are all Hall Effect current probes. The MR415, MR416, MR525 and MR526 have single or dual ranges with 5 ft. (1.5m) lead terminated by 4mm safety banana plug leads. They are designed for DMM, Data Loggers and Power Analyzers. The MR417 and MR527 have dual ranges and a 6.5 ft (2m) lead terminated by a BNC connector. They are designed for oscilloscopes, waveform displaying instruments, and other frequency sensitive displaying instruments.

FEATURES:

  • Powered by battery or standard external 5V power supply via micro-USB connector (not supplied)
  • The jaw shape enables users to clamp on to cables or small busbars
  • Measures up to 1000AAC and 1400ADC (model dependent)
  • Automatic Zero DC reset function
  • Auto Power Off enable/disable function
  • Millivolt output compatible with most equipment and instruments
  • Battery life up to 50 hours
  • Safety rating 600V CATIII



APPLICATIONS:

  • Electrical conductors
  • Electrical safety compliance Testing
  • Industrial applications
  • Low-power secondary



MR_Series_w/ Banana Plug_Datasheet                MR_Series_w/ BNC connector_Datasheet

Clear
SKU: N/A Categories: ,
Show Advanced Filters

products found
Item # Model Current Range Output Signal Price

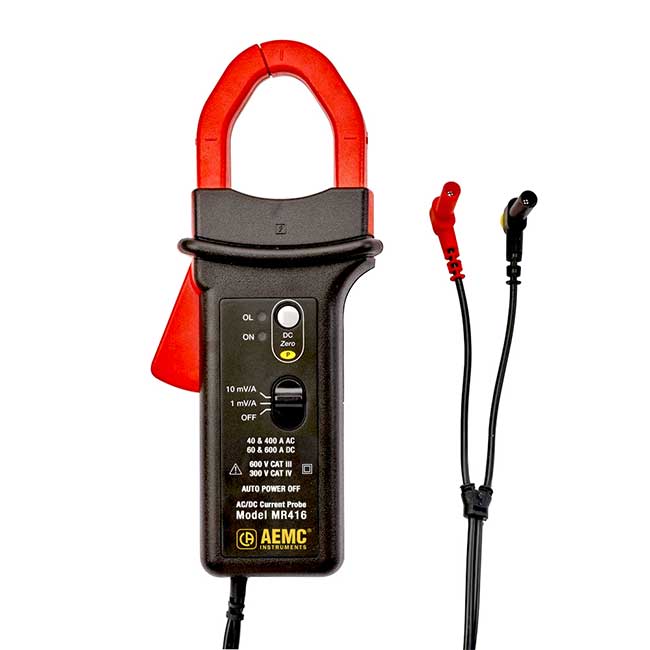

AE/1200.82MR4160.5 to 40AAC, 60ADC / 0.5 to 400AAC, 600ADC10mV/A, 1mV/A$304.00

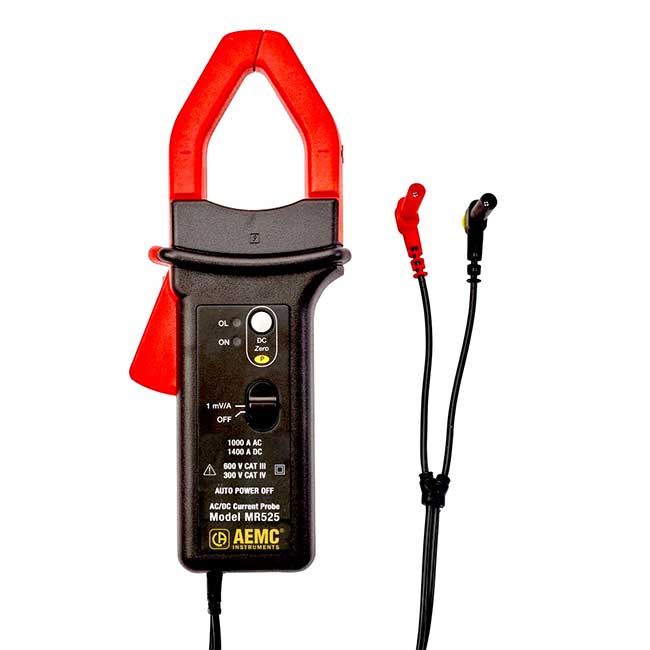

AE/1200.81MR5250.5 to 1000AAC, 1400ADC1mV/A$329.00

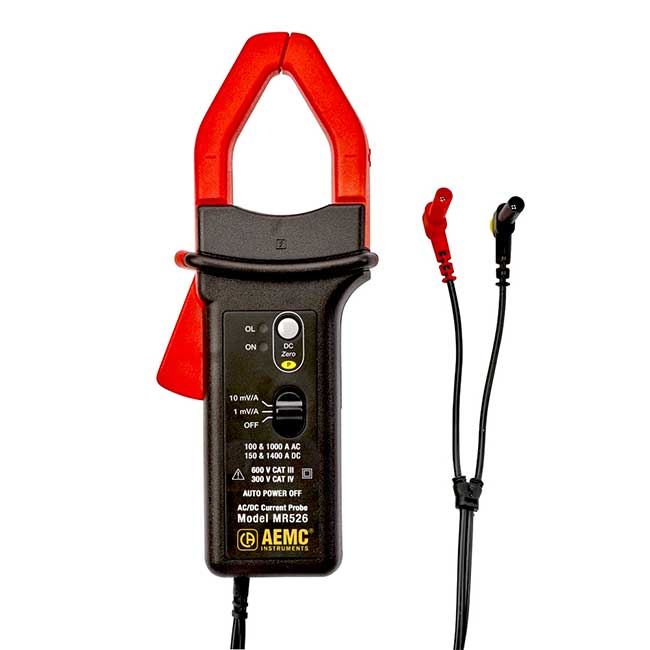

AE/1200.83MR5260.5 to 100AAC, 150ADC / 0.5 to 1000AAC, 1400ADC10mV/A, 1mV/A$369.00

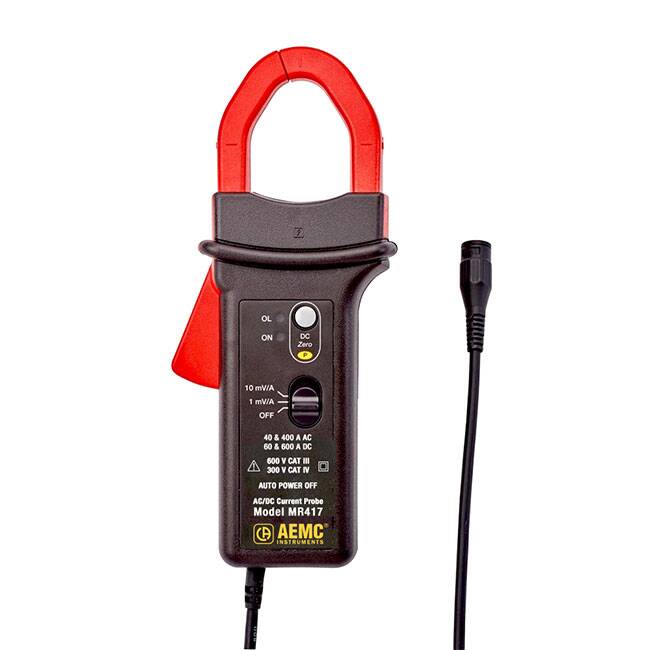

AE/1200.84MR4170.5 to 40AAC, 60ADC / 0.5 to 400AAC, 600ADC10mV/A, 1mV/A, BNC Output$329.00

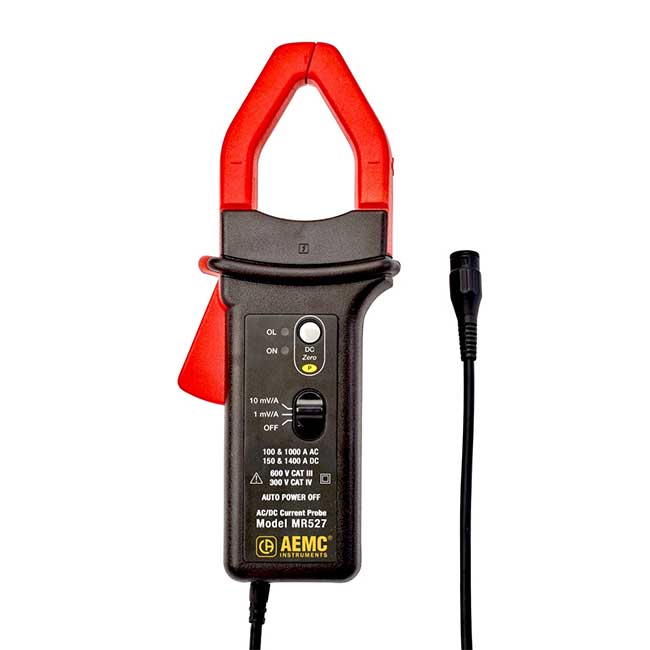

AE/1200.85MR5270.5 to 100AAC, 150ADC / 0.5 to 1000AAC, 1400ADC10mV/A, 1mV/A, BNC Output$399.00
AE/1200.80MR4150.5 to 400AAC, 600ADC1mV/A$284.00
