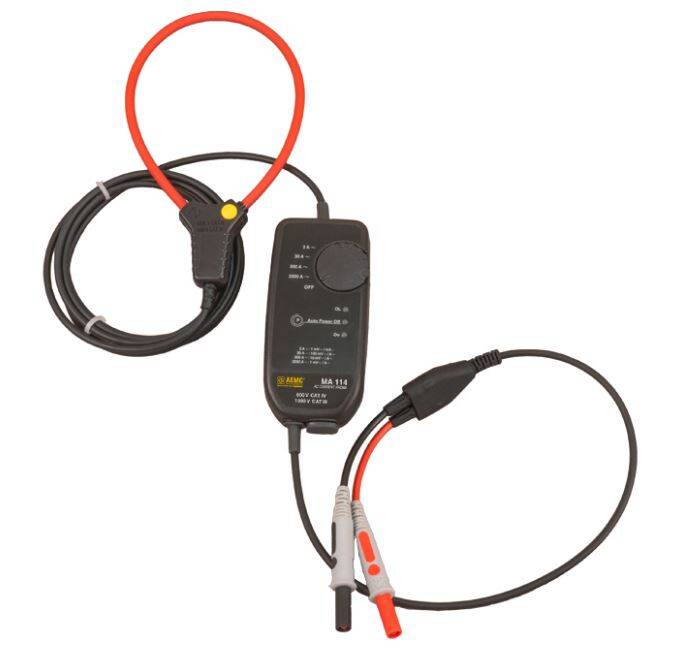

AEMC 14″ Flexible Current Probe
The Miniflex® MA114 is an AC current sensor composed of a flexible Rogowski coil and an electronic module. The sensor permits measurements on conductors where standard clamp-on probes cannot be used. It can be installed in tight spaces, around cable bundles, bus bars, or even wrapped around irregular shapes.
The Miniflex® has an AC mV output proportional to the current measured, for direct readings on DMMs, loggers, oscilloscopes and power or harmonic meters. The length of the flexible sensor is 14″ (35cm) and clamps around conductors up to 4” (10cm). Four ranges are available, 3A:3V, 30A:3V, 300A:3V and 3000A:3V. The model MA114 is powered by AA batteries or by a standard mains adapter (5Vdc, 100mA) thru a type B micro-USB connector.
AEMC MiniFlex® 14″ Model MA114 P/N 2153.41
