AC Ammeters (Switchboard) – Crompton

Description

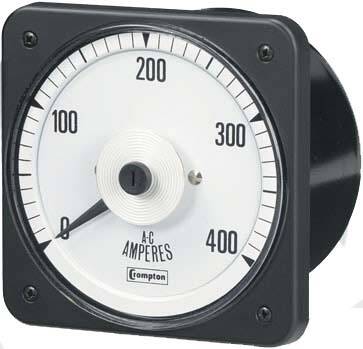

Crompton-007-ACA
click to view larger image

High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 specifications. Available in 4½” case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. The range offers various customized options and features.

Mounting is by four integral studs. Scales are 240° moving iron and 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers

Crompton Switchboard Meters offers two case types; models 007 and 078

  • Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources.
  • Model 078 is a high shock hermetically sealed and all models have heavy gauge pressed steel cases. They have a die-cast bezel and a projecting moulded toughened glass window, which incorporates a gas tight zero adjuster.

Features

  • 250° Linear Scale
  • AC Instruments with True RMS Circuit
  • Rugged Pivot & Jewel Movement
  • IP54 Front
  • c-UL-us & CE Certification
  • Optional Terminal Cover (007 Case)



Crompton SWBD Specs

Catalog Page 051               Crompton Switchboard Catalog

SKU: N/A Categories: , , ,
Show Advanced Filters

products found
Item # Type Rating (A) Scale (A) Case
078-05FJ-LSTM-C6RMS Reading Transformer Rated5 A0-20004 1/2 Square Flange Hi-Shock Case
007-05FA-MFMF-C7RMS Reading Self Contained7.5 A0-7.54 1/2 Plastic Case
007-05FA-LJLJ-C7RMS Reading Self Contained3 A0-34 1/2 Plastic Case
007-05FA-LSLS-C7RMS Reading Self Contained5 A0-54 1/2 Plastic Case
078-05FJ-NDND-C6RMS Reading Self Contained15 A0-154 1/2 Square Flange Hi-Shock Case
078-05FJ-LSLS-C6RMS Reading Self Contained5 A0-54 1/2 Square Flange Hi-Shock Case
007-05FA-LELE-C7RMS Reading Self Contained2 A0-24 1/2 Plastic Case
078-05FJ-MFMF-C6RMS Reading Self Contained7.5 A0-7.54 1/2 Square Flange Hi-Shock Case
078-05FJ-LCLC-C6RMS Reading Self Contained1 A0-14 1/2 Square Flange Hi-Shock Case
007-05FA-NLNL-C7RMS Reading Self Contained30 A0-304 1/2 Plastic Case
078-05FJ-LELE-C6RMS Reading Self Contained2 A0-24 1/2 Square Flange Hi-Shock Case
007-05FA-NGNG-C7RMS Reading Self Contained20 A0-204 1/2 Plastic Case
078-05FJ-MTMT-C6RMS Reading Self Contained10 A0-104 1/2 Square Flange Hi-Shock Case
078-05FJ-LALA-C6RMS Reading Self Contained1 A0-14 1/2 Square Flange Hi-Shock Case
007-05FA-NDND-C7RMS Reading Self Contained15 A0-154 1/2 Plastic Case
007-05FA-LSUP-C7RMS Reading Transformer Rated5 A0-60004 1/2 Plastic Case
078-05FJ-LSNG-C6RMS Reading Transformer Rated5 A0-204 1/2 Square Flange Hi-Shock Case
007-05FA-LSUJ-C7RMS Reading Transformer Rated5 A0-50004 1/2 Plastic Case
078-05FJ-LSMT-C6RMS Reading Transformer Rated5 A0-104 1/2 Square Flange Hi-Shock Case
007-05FA-LSMT-C7RMS Reading Transformer Rated5 A0-104 1/2 Plastic Case
007-05FA-LSTC-C7RMS Reading Transformer Rated5 A0-15004 1/2 Plastic Case
007-05FA-LSSS-C7RMS Reading Transformer Rated5 A0-10004 1/2 Plastic Case
007-05FA-LSUS-C7RMS Reading Transformer Rated5 A0-70004 1/2 Plastic Case
007-05FA-LSSU-C7RMS Reading Transformer Rated5 A0-12004 1/2 Plastic Case
007-05FA-LSND-C7RMS Reading Transformer Rated5 A0-154 1/2 Plastic Case
007-05FA-LSTM-C7RMS Reading Transformer Rated5 A0-20004 1/2 Plastic Case
007-05FA-LSPK-C7RMS Reading Transformer Rated5 A0-1004 1/2 Plastic Case
007-05FA-LSSF-C7RMS Reading Transformer Rated5 A0-5004 1/2 Plastic Case
007-05FA-LSRL-C7RMS Reading Transformer Rated5 A0-2004 1/2 Plastic Case
007-05FA-LSNP-C7RMS Reading Transformer Rated5 A0-404 1/2 Plastic Case
007-05FA-LSPZ-C7RMS Reading Transformer Rated5 A0-1504 1/2 Plastic Case
007-05FA-LSRS-C7RMS Reading Transformer Rated5 A0-2504 1/2 Plastic Case
007-05FA-LSNG-C7RMS Reading Transformer Rated5 A0-204 1/2 Plastic Case
007-05FA-LSPB-C7RMS Reading Transformer Rated5 A0-754 1/2 Plastic Case
078-05FJ-LSNJ-C6RMS Reading Transformer Rated5 A0-254 1/2 Square Flange Hi-Shock Case
078-05FJ-LSNL-C6RMS Reading Transformer Rated5 A0-304 1/2 Square Flange Hi-Shock Case
007-05FA-LSTE-C7RMS Reading Transformer Rated5 A0-16004 1/2 Plastic Case
007-05FA-LSSN-C7RMS Reading Transformer Rated5 A0-8004 1/2 Plastic Case
007-05FA-LSNL-C7RMS Reading Transformer Rated5 A0-304 1/2 Plastic Case
007-05FA-LSSJ-C7RMS Reading Transformer Rated5 A0-6004 1/2 Plastic Case
007-05FA-LSNT-C7RMS Reading Transformer Rated5 A0-504 1/2 Plastic Case
078-05FJ-NLNL-C6RMS Reading Self Contained30 A0-304 1/2 Square Flange Hi-Shock Case
007-05FA-LSSC-C7RMS Reading Transformer Rated5 A0-4004 1/2 Plastic Case
007-05FA-LSTU-C7RMS Reading Transformer Rated5 A0-25004 1/2 Plastic Case
007-05FA-LSUW-C7RMS Reading Transformer Rated5 A0-80004 1/2 Plastic Case
078-05FJ-LSSJ-C6RMS Reading Transformer Rated5 A0-6004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSUW-C6RMS Reading Transformer Rated5 A0-80004 1/2 Square Flange Hi-Shock Case
007-05FA-LSUE-C7RMS Reading Transformer Rated5 A0-40004 1/2 Plastic Case
007-05FA-LSNJ-C7RMS Reading Transformer Rated5 A0-254 1/2 Plastic Case
078-05FJ-LSPK-C6RMS Reading Transformer Rated5 A0-1004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSTU-C6RMS Reading Transformer Rated5 A0-25004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSSS-C6RMS Reading Transformer Rated5 A0-10004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSNT-C6RMS Reading Transformer Rated5 A0-504 1/2 Square Flange Hi-Shock Case
078-05FJ-LSSU-C6RMS Reading Transformer Rated5 A0-12004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSTC-C6RMS Reading Transformer Rated5 A0-15004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSUE-C6RMS Reading Transformer Rated5 A0-40004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSSN-C6RMS Reading Transformer Rated5 A0-8004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSUS-C6RMS Reading Transformer Rated5 A0-70004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSRX-C6RMS Reading Transformer Rated5 A0-3004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSSC-C6RMS Reading Transformer Rated5 A0-4004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSRL-C6RMS Reading Transformer Rated5 A0-2004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSUJ-C6RMS Reading Transformer Rated5 A0-50004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSND-C6RMS Reading Transformer Rated5 A0-154 1/2 Square Flange Hi-Shock Case
007-05FA-LALA-C7RMS Reading Self Contained1 A0-14 1/2 Plastic Case
078-05FJ-LJLJ-C6RMS Reading Self Contained3 A0-34 1/2 Square Flange Hi-Shock Case
007-05FA-MTMT-C7RMS Reading Self Contained10 A0-104 1/2 Plastic Case
007-05FA-LSUA-C7RMS Reading Transformer Rated5 A0-30004 1/2 Plastic Case
007-05FA-LSRX-C7RMS Reading Transformer Rated5 A0-3004 1/2 Plastic Case
078-05FJ-LSPZ-C6RMS Reading Transformer Rated5 A0-1504 1/2 Square Flange Hi-Shock Case
078-05FJ-LSSF-C6RMS Reading Transformer Rated5 A0-5004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSPB-C6RMS Reading Transformer Rated5 A0-754 1/2 Square Flange Hi-Shock Case
078-05FJ-LSUP-C6RMS Reading Transformer Rated5 A0-60004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSRS-C6RMS Reading Transformer Rated5 A0-2504 1/2 Square Flange Hi-Shock Case
078-05FJ-LSNP-C6RMS Reading Transformer Rated5 A0-404 1/2 Square Flange Hi-Shock Case
078-05FJ-LSUA-C6RMS Reading Transformer Rated5 A0-30004 1/2 Square Flange Hi-Shock Case
078-05FJ-LSTE-C6RMS Reading Transformer Rated5 A0-40004 1/2 Square Flange Hi-Shock Case
007-05FA-LCLC-C7RMS Reading Self Contained1.5 A0-1.54 1/2 Plastic Case
078-05FJ-NGNG-C6RMS Reading Self Contained20 A0-204 1/2 Square Flange Hi-Shock Case
