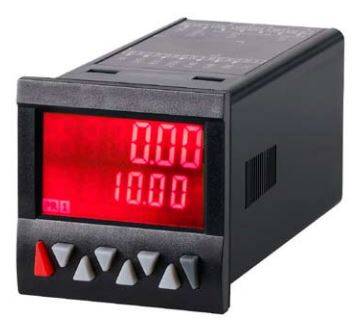

924K Counter, Rate Meter & Timer – Trumeter / KEP
This unique multi-purpose device provides a simultaneous display of the actual value, presets, batch count or total count. Two relay outputs and annunciators for the displayed preset and for the output status enhance device flexibility.
Ideal for automated processing, such as batching, conveyor belts, and ratio, interval and run-time measurement, the 924K is designed to operate under extreme temperature conditions and in high vibration environments.
- Displays actual value, presets, batch count or total count
- 3 predefined parameter settings
- Tracking presets
- 4 stage RESET modes
- 2 relay outputs
- 3 stage key lockout
|924KA0||Counter, Rate, Timer; 90-260 VAC power, Relay Outputs|
|924KB0||Counter, Rate, Timer; 10-30 VDC power, Relay Outputs|
|924KA1||Counter, Rate, Timer; 90-260 VAC power, Opto-Coupler Outputs|
|924KB1||Counter, Rate, Timer; 10-30 VDC power, Opto-Coupler Outputs|
