1000V Digital/Analog Megohmmeter Models 1050 & 1060 – AEMC

Description

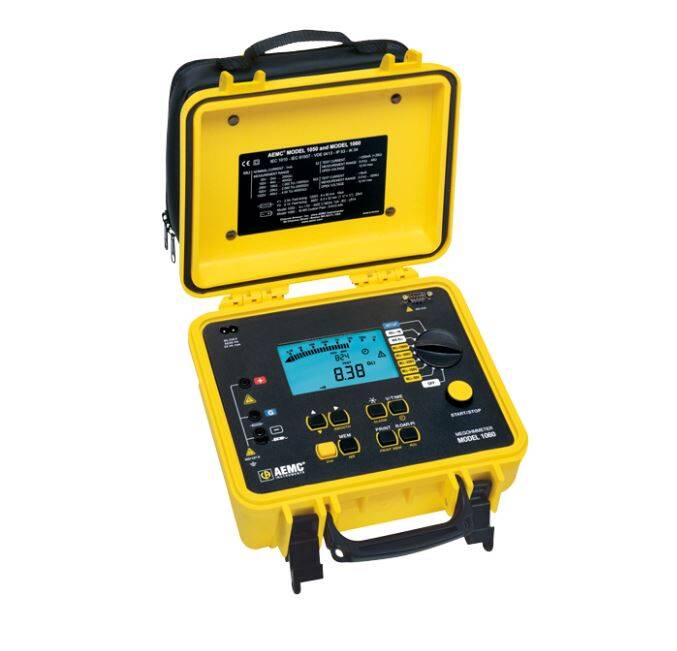

The Megohmmeter Model 1050 and 1060 are 1000V Digital/Analog Insulation Testers. They are designed to facilitate testing by incorporating automatic measurement features and user-friendly functions. They provide test voltage combinations of 50V, 100V, 250V, 500V and 1000V. Measurements are displayed on a large dual-display LCD with bargraph for quick viewing of changes or trends.

They automatically provide the DAR and PI ratios directly on the display. User-defined PI time intervals may also be programmed. The user may even select DAR or PI functions before the test, and the megohmmeter will stop at the appropriate time and display the results.

An automatic test inhibitor prevents testing on live circuits above 25V and discharge test voltage may be displayed. A memory feature permits storage, recalling and displaying of resistance values taken at user-specified intervals during a test.

Features

  • True MegohmMeter®
  • Test voltage combinations of 50V, 100V, 250V, 500V and 1000V
  • Insulation measurements to 4000Gohm (4Tohm)
  • Direct measurement of DAR and PI values
  • Direct measurement of sample Capacitance
  • Display of test voltage and run time
  • Programmable test run times and PI times
  • Smooth and Alarm functions
  • Automatic test inhibition (if live sample >25V)
  • Automatic discharge after use with voltage display
  • Large dual display with time, voltage and measurement
  • Bright blue electrolumenescent backlight
  • Battery powered (Model 1050)
  • Auto power-down when not in use
  • Remote operation with optional test probe
  • Rugged dual wall field case with detachable lead/accessory pouch
  • EN 61010-1, 600V Cat III, IEC 61557 and CE rated
  • CE Approved, Double Insulation

Model 1060 includes the following additional features:

  • AC rechargeable NiMH batteries
  • RS-232 interface for direct printing of results (serial output)
  • 128k memory to store measurements in specific files
  • Remote operation of megohmMeter through PC
  • Includes DataView® software to configure instrument and generate reports

DataView® Software for Models 1060, 5060 & 5070

  • Configure all functions and run tests from your PC
  • Retrieve and display data in real time
  • Retrieve data from memory in real time
  • Display plots & print reports
1000V Digital/Analog Megohmmeter Specs

Catalog Page 157                            AEMC-2130 Datasheet



Clear
SKU: N/A Categories: ,

products found
Item # Description Price
AE/2130.03Digital, Analog Bargraph, Alarm, Timer, 50V, 100V, 250V, 500V, 1000V, Auto DAR/PI, Resistance, Continuity, RS-232 w/DataView® Software, 128kB Memory$1,940.00
AE/2130.01Digital, Analog Bargraph, Alarm, Timer, 50V, 100V, 250V, 500V, 1000V, Auto DAR/PI, Resistance, Continuity$1,690.00
